Product Summary
The PEF3201V1.4 is a chip transceiver IC. It integrates all functions of a SDSL transceiver according to the emerging ETSI and ITU standards. The PEF3201V1.4 can operate at all data rates from 144kBit/s up to 2.3MBit/s in 8kBit/s granularity. Its small package and low power consumption make it especially useful in linecard and remote feed applications. The PEF3201V1.4 is also interoperable with the MuBIC MDSL chip. Infineon also supplies a wide range of other telecom ICs to offer complete system solutions for different applications.
Parametrics
PEF3201V1.4 absolute maximum ratings: (1)Supply Current: 10mA; (2)Operating Temperature Range: - 40 to + 85℃.
Features
PEF3201V1.4 features: (1)Single chip SDSL transceiver; (2)Plastic TQFP-144 package; (3)Lowest power consumption; (4)TCPAM linecode with 2, 3 or 4 Bits/symbol; (5)Synchronous or plesiochronous operation; (6)8-Bit μC parallel interface of Infineon/Intel and Motorola multiplexed/demuliplexed type; (7)Transparent transmission or built-in Framer with MuBIC or SDSL framing; (8)Embedded μC also usable for board control; (9)Two integrated HDLC controlers for payload and EOC; (10)Warmstart capability; (11)G. handshake start-up.

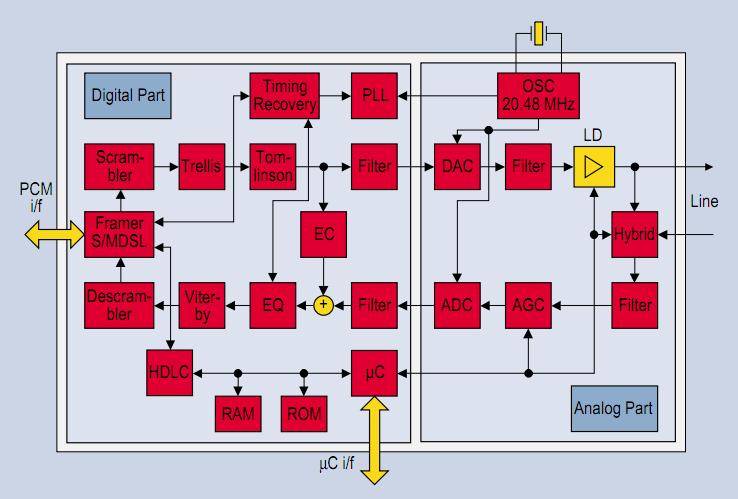

Diagrams
