Product Summary

The S29AL032D70TFI030 is a 32 megabit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. Word mode data appears on DQ0-DQ15; byte mode data appears on DQ0-DQ7. The S29AL032D70TFI030 is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers.

Parametrics

S29AL032D70TFI030 absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground; (4)All pins except A9 and OE#: -0.5 V to VCC+0.5 V; VCC: -0.5 V to +4.0 V; A9 and OE#: -0.5 V to +12.5 V; (5)Output Short Circuit Current: 200 mA.

Features

S29AL032D70TFI030 features: (1)Single power supply operation, Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; (2)Manufactured on 200 nm process technology, Fully compatible with 0.23 μm Am29LV320D, 0.32 μm Am29LV033C, and 0.33 μm MBM29LV320E devices; (3)Flexible sector architecture, Boot sector models: Eight 8-Kbyte sectors; sixtythree 64-Kbyte sectors; top or bottom boot block; (4)configurations available; Uniform sector models: Sixty-four 64-Kbyte sectors; (5)Sector Protection features, A hardware method of locking a sector to prevent any program or erase operations within that sector; Sectors can be locked in-system or via programming; (6)equipment; Temporary Sector Unprotect feature allows code; (7)changes in previously locked sectors; (8)Unlock Bypass Program Command, Reduces overall programming time when issuing multiple program command sequences.

Diagrams

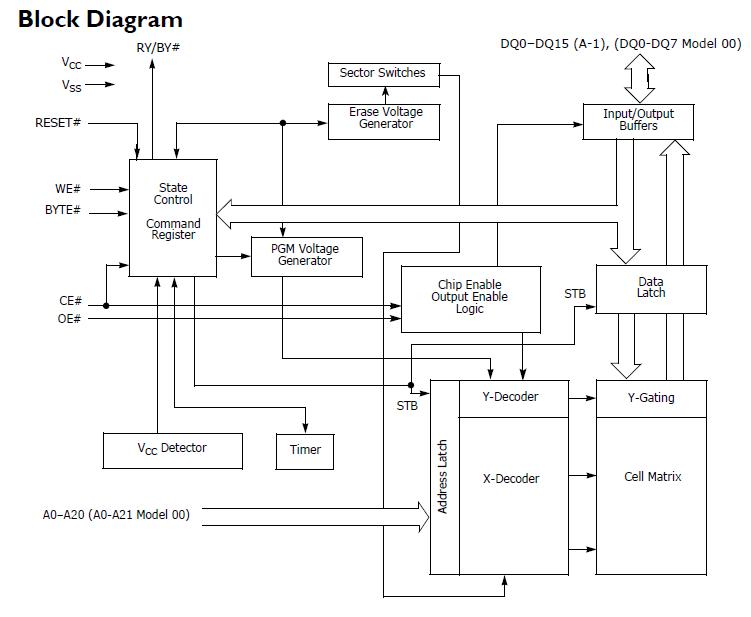

S29AL032D70TFI030 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S29AL032D70TFI030
S29AL032D70TFI030

Spansion

Flash 32MB CMOS 3.0V 70ns TOP SECTOR PBF

Data Sheet

0-1: $1.75
1-25: $1.66
25-100: $1.61
100-500: $1.53
