Product Summary
The S29GL01GP12TFI02 is a Mirrorbit flash fabricated on 90nm process technology. The S29GL01GP12TFI02 offers a fast page access time of 25 ns with a corresponding random access time of 110ns. The S29GL01GP12TFI02 features a Write Buffer that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms.
Parametrics
S29GL01GP12TFI02 absolute maximum ratings: (1) Storage Temperature, Plastic Packages: -65°C to +150°C; (2) Ambient Temperature with Power Applied: -65°C to +125°C; (3) Voltage with Respect to Ground: -0.5 V to VCC + 0.5 V (All Inputs and I/Os except as noted below) , Vcc: -0.5V to +4.0V, A9 and ACC: -0.5 to 12.5V; (4) Output Short Circuit Current: 200mA.
Features
S29GL01GP12TFI02 features: (1) Single word programming or a 32-word buffer for an increased programming speed; (2) Program Suspend/Resume and Erase Suspend/Resume; (3) Advanced Sector Protection methods for protecting sectors as required; (4) 128 words of Secured Silicon area for storing customer and factory secured information. The Secured Silicon Sector is One Time Programmable.

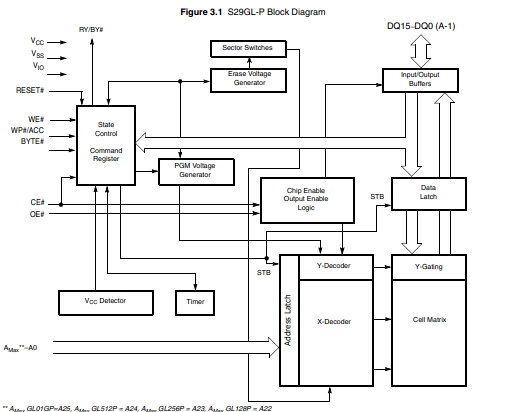

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 S29GL01GP12TFI020 |
Spansion |
Flash 1GB 2.7-3.6V 120ns PBF |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
S29GL016A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
S29GL01GP |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
S29GL01GP11FAIR10 |
Spansion |
Flash IC 1GIG 3.0V FLSHMEM |
Data Sheet |
|
|
||||||||||||
|
S29GL01GP11FAIR20 |
Spansion |
Flash 1GB 3.0-3.6V 110ns |
Data Sheet |
|
|
||||||||||||
|
S29GL01GP11FFCR10 |
Spansion |
Flash 1GB 3.0-3.6V 110ns PBF |
Data Sheet |
|
|
||||||||||||
|
S29GL01GP11FFCR20 |
Spansion |
Flash 1GB 3.0-3.6V 110ns PBF |
Data Sheet |
|
|
||||||||||||
