S29GL064N90BFI04

S29GL064N90BFI04, 32 Megabit Page Mode Flash Memory, BGA, 3V, 200mA, SPANSION

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: S29GL064N90BFI04

Brand:: SPANSION - spansion | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-08

From Other Seller

Part Number:S29GL064N90BFI04
US $2.50 - 3.00
Quantity:

piece

Product Summary

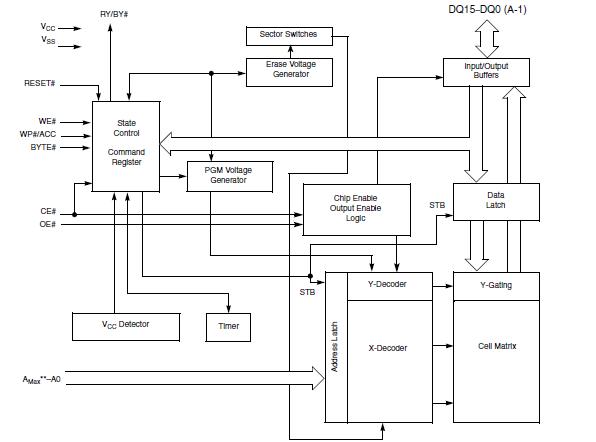

The S29GL064N90BFI04 is a 3.0-Volt single-power Flash memory manufactured using 110 nm MirrorBit technology. The S29GL064N90BFI04 is a 64-Mb device organized as 4,194,304 words or 8,388,608 bytes. The S29GL064N90BFI04 is a 32-Mb device organized as 2,097,152 words or 4,194,304 bytes. Depending on the model number, the device has 16-bit wide data bus only, or a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The device can be programmed either in the host system or in standard EPROM programmers.

Parametrics

S29GL064N90BFI04 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V; A9, OE#, ACC and RESET#: -0.5 V to +12.5 V; All other pins: -0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

S29GL064N90BFI04 features: (1)Advanced Sector Protection: offers Persistent Sector Protection and Password Sector Protection; (2)Program Suspend & Resume: read other sectors before programming operation is completed; (3)Erase Suspend & Resume: read/program other sectors before an erase operation is completed; (4)Data# polling & toggle bits provide status; (5)CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices; (6)Unlock Bypass Program command reduces overall multiple-word programming time.
