Product Summary
The S3C2443X40-YL8N is a 32-bit CMOS microprocessor, designed to provide hand-held devices and general applications with low power, and high-performance microcontroller solution in small die size. The S3C2443X40-YL8N is developed with ARM920T core, 0.13um CMOS standard cells and a memory complier. Its lowpower, simple, elegant and fully static design is particularly suitable for cost and power-sensitive applications. It adopts a new bus architecture known as Advanced Micro controller Bus Architectur (AMBA). The S3C2443X40-YL8N offers outstanding features with its CPU core, a 16/32-bit ARM920T RISC processor designed by Advanced RISC Machines, Ltd. The S3C2443X40-YL8N implements MMU, AMBA BUS, and Harvard cache architecture with separate 16KB instruction and 16KB data caches, each with an 8-word line length.
Parametrics
S3C2443X40-YL8N absolute maximum ratings: (1)DC Supply Voltage, VDDi: 1.2V VDD to 1.8 V; VDDOP: 3.3V VDD to 4.8V; VDDMOP: 1.8V/2.5V/3.0V/3.3V VDD to 4.8V; VDDRTC 1.8V/2.5V/3.0V/3.3V VDD to 4.5V; VDDADC: 3.3V VDD to 4.8V; (2)DC Input Voltage, VIN: 3.3V Input buffer to 4.8V; 3.3V Interface / 5V Tolerant input buffer to 6.5V; (3)DC Output Voltage, VOUT: 3.3V Output buffer to 4.8V; (4)DC Input (Latch-up) Current, IIN: ±200 mA; (5)Storage Temperature, TSTG: -65 to 150℃.
Features
S3C2443X40-YL8N features: (1)A/D Converter & Touch Screen Interface, 8-ch multiplexed ADC; Max. 500KSPS and 10-bit Resolution; Internal FET for direct Touch screen interface; (2)Watchdog Timer, 16-bit Watchdog Timer; Interrupt request or system reset at time-out; (3)IIC-Bus Interface 1-ch Multi-Master IIC-Bus; Serial, 8-bit oriented and bi-directional data transfers can be made at up to 100 Kbit/s in Standard mode or up to 400 Kbit/s in Fast mode.; (4)IIS-Bus Interface, 1-ch IIS-bus for audio interface with DMA-based operation; Serial, 8-/16-bit per channel data transfers; 128 Bytes (64-Byte + 64-Byte) FIFO for Tx/Rx; Supports IIS format and MSB-justified data format; (5)AC97 Audio-CODEC Interface, Support 16-bit samples; 1-ch stereo PCM inputs/ 1-ch stereo PCM outputs 1-ch MIC input; (6)USB Host, 2-port USB Host; Complies with OHCI Rev. 1.0; Compatible with USB Specification version 1.1; (7)USB Device, 1-port USB Device; 5 Endpoints for USB Device; Compatible with USB Specification version 1.1; (8)SD Host Interface, Normal, Interrupt and DMA data transfer mode (byte, halfword, word transfer); DMA burst4 access support (only word transfer); Compatible with SD Memory Card Protocol version 1.0; Compatible with SDIO Card Protocol version 1.0; 64 Bytes FIFO for Tx/Rx; Compatible with Multimedia Card Protocol version 2.11; (9)SPI Interface, Compatible with 2-ch Serial Peripheral Interface; (10)Protocol version 2.11; 2x8 bits Shift register for Tx/Rx; DMA-based or interrupt-based operation; (11)Camera Interface; (12)Operating Voltage Range, Core: 1.20V for 300MHz; 1.30V for 400MHz; Memory: 1.8V/ 2.5V/3.0V/3.3V; I/O: 3.3V; (13)Operating Frequency, Fclk Up to 400MHz; Hclk Up to 136MHz; Pclk Up to 68MHz; (14)Package: 289-FBGA.

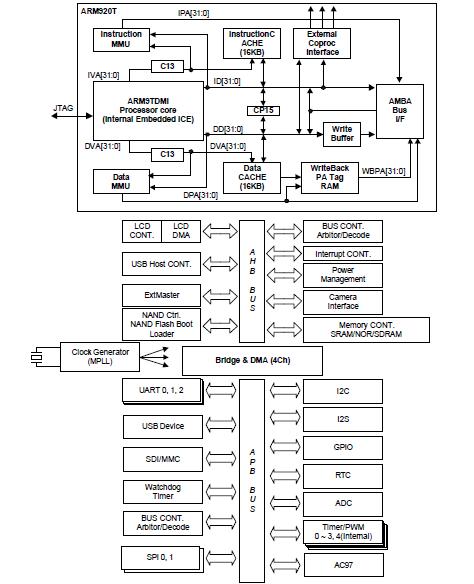

Diagrams
