Product Summary

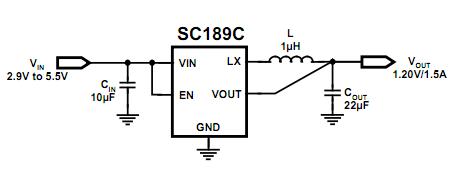

The SC189ASKTR is a high efficiency, synchronous step-down regulator providing up to 1.5A output current in either an ultra-small 2mm x 2mm, low profile package or a low cost SOT23-5 package. The SC189ASKTR requires only three external filter components for a complete step down regulator solution. The input voltage range is 2.9 to 5.5V with either factory programmed outputs from 1.0 to 3.3V or adjustable output via an external resistor divider. The applications of the SC189ASKTR include Bluetooth Radios, DSC and PMPs, GPS Devices, xDSL Systems, POL Regulators, Portable HDD, Wireless LAN.

Parametrics

SC189ASKTR absolute maximum ratings: (1)VIN Supply Voltage: -0.3 to 6.0V; (2)LX Voltage: -1 to VIN+1V, -3V (20ns Max), 6V Max; (3)VOUT Voltage: -0.3 to VIN+0.3V; (4)EN Voltage: -0.3 to VIN+0.3V; (5)Peak IR Reflow temperature: 260℃; (6)ESD Protection Level: 3kV.

Features

SC189ASKTR features: (1)VIN Range: 2.9-5.5V; (2)VOUT Options: 1.0-3.3V; (3)Up to 1.5A Output Current; (4)Ultra-Small Footprint, <1mm Height Solution; (5)2.5MHz Switching Frequency; (6)Efficiency Up to 93%; (7)Low Output Noise Across Load Range; (8)Excellent Transient Response; (9)Start Up into Pre-Bias Output; (10)100% Duty-Cycle Low Dropout Operation; (11)<1μA Shutdown Current; (12)Internal Soft Start; (13)Input Under-Voltage Lockout; (14)Output Over-Voltage, Current Limit Protection; (15)Over-Temperature Protection; (16)Adjustable Output Voltage; (17)Available in SOT23-5 package and 2mm x 2mm x 0.6mm thermally enhanced MLPD-UT6 package; (18)-40 to +85℃ Temperature Range; (19)Fully WEEE and RoHS Compliant.
