Product Summary

The SKY77336-13 is a Power Amplifier Module (PAM). It is designed in a compact form factor for quad-band cellular handsets comprising GSM850/900, DCS1800 and PCS1900, supporting Gaussian Minimum-Shift Keying (GMSK) and Polar Enhanced Data for GSM Evolution (EDGE) modulation. Class 12 General Packet Radio Service (GPRS) multi-slot operation is also supported. The applications of the SKY77336-13 are Quad-band cellular handsets, GMSK Modulation, EDGE modulation.

Parametrics

SKY77336-13 absolute maximum rating: Operating Temperature: 20 to +85℃.

Features

SKY77336-13 features: (1)High efficiency; (2)Small outline; (3)Low profile; (4)Low VRAMP current.

Diagrams

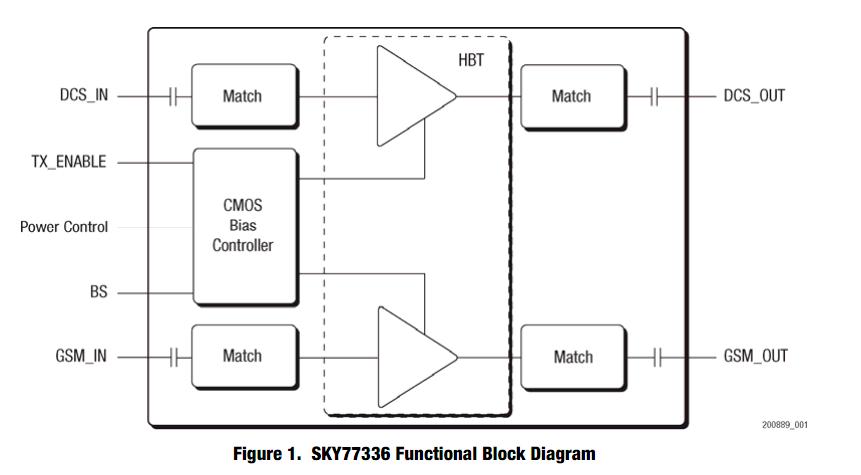

SKY77336-13 block diagram
