Product Summary
The SN74AVC1T45DLKR is a single-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74AVC1T45DLKR is optimized to operate with V CCA /V CCB set at 1.4 V to 3.6 V. It is operational with V CCA /V CCB as low as 1.2 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes.
Parametrics
SN74AVC1T45DLKR absolute maximum ratings: (1)VCCA, VCCB, Supply voltage range: -0.5 to 4.6 V; (2)VI, Input voltage range, I/O ports (A port): -0.5 to 4.6V; I/O ports (B port): -0.5 to 4.6 V; Control inputs: -0.5 to 4.6V; (3)VO, Voltage range applied to any output in the high-impedance or power-off state, A port: -0.5 to 4.6V; B port: -0.5 to 4.6V; (4)VO, Voltage range applied to any output in the high or low state , A port: -0.5 to VCCA + 0.5V; B port: -0.5 to VCCB + 0.5V; (5)IIK, Input clamp current VI< 0: -50 mA; (6)IOK, Output clamp current V O < 0: -50 mA; (7)IO, Continuous output current: ±50 mA; (8)Continuous current through VCCA, VCCB, or GND: ±100 mA.
Features
SN74AVC1T45DLKR features: (1)Available in the Texas Instruments NanoStar and NanoFree Packages; (2)Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2-V to 3.6-V Power-Supply Range; (3)VCC Isolation Feature - If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State; (4)DIR Input Circuit Referenced to VCCA; (5)±12-mA Output Drive at 3.3 V; (6)I/Os Are 4.6-V Tolerant; (7)Ioff Supports Partial-Power-Down Mode Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (9)ESD Protection Exceeds JESD 22, 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101).

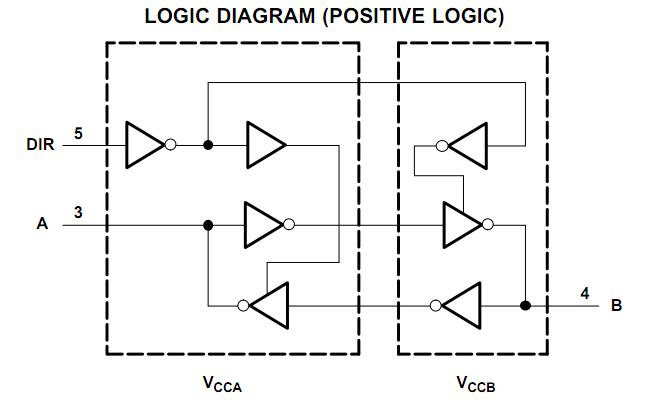

Diagrams
