Product Summary
The SN74CBT16244DGGRG4 is a 16-bit FET bus switch provides high-speed TTL-compatible bus switching in a standard’16244 device pinout. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The SN74CBT16244DGGRG4 is organized as four 4-bit low-impedance switches with separate output-enable (OE) inputs.
Parametrics
SN74CBT16244DGGRG4 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Continuous channel current: 128 mA; (4)Input clamp current, IIK (VI/O < 0): -50 mA; (5)Package thermal impedance, qJA (see Note 2): DGG package: 70℃/W; DGV package: 58℃/W; DL package: 63℃/W; (6)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74CBT16244DGGRG4 features: (1)Members of Texas Instruments’ WidebusE Family; (2)Standard’16244-Type Pinout; (3)5-W Switch Connection Between Two Ports; (4)TTL-Compatible Input Levels.

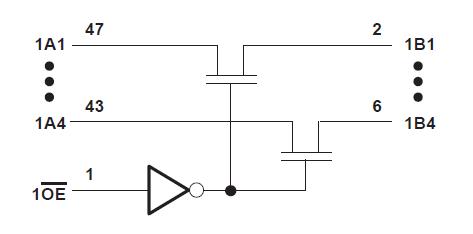

Diagrams
