SST89V564RD-33-C-NJE

SST89V564RD-33-C-NJE, 8-bit microcontroller, PLCC, -0.5V to +14.0V, 50mA, 1.5W, Silicon Storage Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: SST89V564RD-33-C-NJE

Brand:: Silicon Storage Technology, Inc - SST | Pack: PLCC | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-22

From Other Seller

Part Number:SST89V564RD-33-C-NJE
US $2.50 - 3.00
Quantity:

piece

Product Summary

The SST89V564RD-33-C-NJE is an 8-bit microcontroller designed and manufactured with SST’s patented and proprietary SuperFlash CMOS semiconductor process technology. The split-gate cell design and thick-oxide tunneling injector offer significant cost and reliability benefits for our customers. The SST89V564RD-33-C-NJE uses the 8051 instruction set and are pin-for-pin compatible with standard 8051 microcontroller devices.

Parametrics

SST89V564RD-33-C-NJE absolute maximum ratings: (1)Ambient Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on EA# Pin to VSS: -0.5V to +14.0V; (4)D.C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (5)Transient Voltage (<20ns) on Any Other Pin to VSS: -1.0V to VDD+1.0V; (6)Maximum IOL per I/O Pins P1.5, P1.6, P1.7: 20mA; (7)Maximum IOL per I/O for All Other Pins: 15mA; (8)Package Power Dissipation Capability (TA = 25℃): 1.5W; (9)Through Hole Lead Soldering Temperature (10 Seconds): 300℃; (10)Surface Mount Solder Reflow Temperature1: 260℃ for 10 seconds; (11)Output Short Circuit Current2: 50 mA.

Features

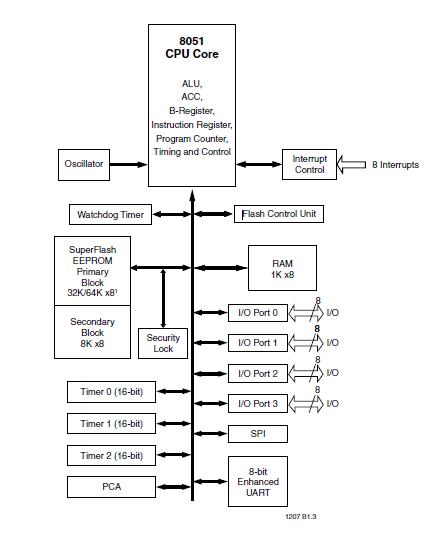

SST89V564RD-33-C-NJE features: (1)8-bit 8051-Compatible Microcontroller (MCU) with Embedded SuperFlash Memory, Fully Software Compatible; Development Toolset Compatible; Pin-For-Pin Package Compatible; (2)SST89E564RD/SST89E554RC Operation, 0 to 40 MHz at 5V; (3)SST89V564RD/SST89V554RC Operation, 0 to 33 MHz at 3V; (4)Total 1 KByte Internal RAM (256 Byte + 768 Byte); (5)Dual Block SuperFlash EEPROM, SST89E564RD/SST89V564RD: 64 KByte primary block + 8 KByte secondary block (128-Byte sector size for both blocks); SST89E554RC/SST89V554RC: 32 KByte primary block + 8 KByte secondary block (128-Byte sector size for both blocks); Individual Block Security Lock with SoftLock; Concurrent Operation during In-Application Programming (IAP); Memory Overlay for Interrupt Support during IAP; (6)Support External Address Range up to 64 KByte of Program and Data Memory; (7)Three High-Current Drive Port 1 pins; (8)Three 16-bit Timers/Counters.
