Product Summary

The STI5197ABB is a Cost-effective QAM demodulator and MPEG2 decoder. The STI5197ABB integrates in a single IC, QAM demodulation, FEC, Multi-stream transport demultiplexing, an applications CPU, audio/video decode, video processing, graphics and display, STB peripherals, audio/video DACs, digital audio/video outputs, USB 2.0 host controller/ULPI and an Ethernet MAC MII/RMII. The STI5197ABB is a feature-optimized variant for Asian markets.

Features

STI5197ABB features: (1)ITU-T J83 Annexes A/B/C, DVB-C compliant; (2)256 QAM demodulation and FEC sub-system; (3)MPEG2 MP@ML video decoding; (4)Audio decoding (MPEG1, 2, MP3, Dolby Digital 5.1); (5)Linux and OS21 compatible ST40 applications CPU; (6)16-bit SDR/DDR1 compatible local memory interface; (7)Multi-stream, DVR capable, transport stream processing; (8)Extensive connectivity (USB 2.0 host/ULPI, Ethernet MAC MII/RMII, DVB-CI); (9)Cable STBs can be produced with very small BOM and two-layer PCBs; (10)Active and passive low power modes; (11)Integrated voltage regulator.

Diagrams

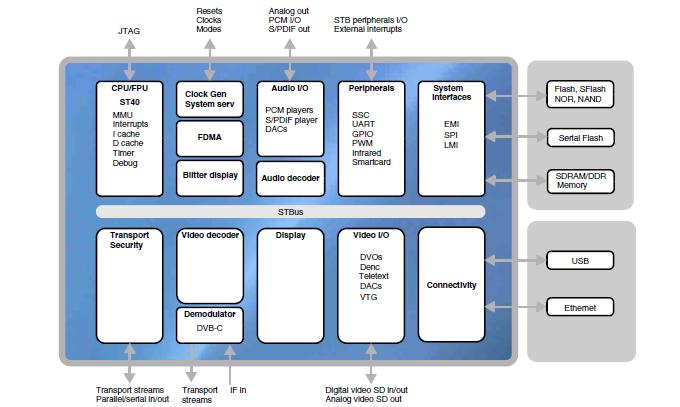

STI5197ABB block diagram
