Product Summary
The STI7710CUD is a STMicroelectronics’ first single chip set-top box decoder for high definition applications, and meets the requirements of all services in the United States, Japan, Australia, as well as the emerging European market. By combining all the features of an HD decoder onto a single device, ST has ensured the lowest possible costs for set-top box manufacturers.
Features
STI7710CUD features: (1)Enhanced ST20 32-bit VL-RISC CPU, 200 MHz, 8-Kbyte Icache, 8-Kbyte Dcache and 4-Kbyte SRAM; (2)Unified memory interface; (3)Dual transport stream merger, Supports DVB, DIRECTVR, and DCII; Integrates DES-ECB, DES-CBC, DVB, ICAM, XTV, Multi2 and Fast-I descramblers; NDS random access scrambled stream; (4)protocol (RASP) compliant; Low-cost DVB-CI and Cable Card support; (5)MPEG2 MP@ML video decoder, Trick modes including smooth fast-forward and rewind.

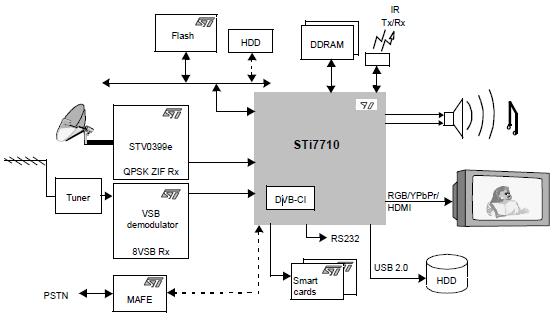

Diagrams
