Product Summary

The STX7710FUC is an NPN transistor manufactured using Planar Technology resulting in rugged high performance devices. The applications of the STX7710FUC include voltage regulation, relay driver, generic switch.

Parametrics

STX7710FUC absolute maximum ratings: (1)VCBO, Collector-Base Voltage (IE = 0): 140 V; (2)VCEO, Collector-Emitter Voltage (IB = 0): 80 V; (3)VEBO, Emitter-Base Voltage (IC = 0): 5 V; (4)IC, Collector Current: 1.5 A; (5)ICM, Collector Peak Current (tp < 5 ms): 2 A; (6)IB, Base Current: 0.3 A; (7)IBM, Base Peak Current (tp < 5 ms): 0.6 A; (8)Ptot, Total Dissipation at Tamb = 25℃: 0.9 W; (9)Tstg, Storage Temperature: -65 to 150℃; (10)Tj Max., Operating Junction Temperature: 150℃.

Features

STX7710FUC feature: Device suitable for through-hole PCB assembly.

Diagrams

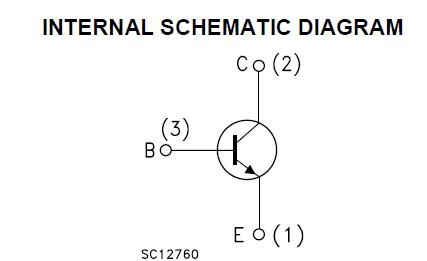

STX7710FUC block diagram
