Product Summary
The SXP36X3GSEC is a SXP-style, encapsulated radial leaded MLC capacitor ideally suited for high temperature applications up to 200oC. The SXP36X3GSEC is intended for downhole oil exploration, including logging while drilling, geophysical probes, as well as space, aerospace and hybrid automotive applications. The SXP36X3GSEC supplements the SMX family of capacitors and offers
mechanical protection to the ceramic element in extreme harsh environment. The high temperature solder utilized in the construction of SXPstyle parts assures reliable operation in high temperature and rugged environments.
Features
SXP36X3GSEC features: (1)Temperature Coefficient, C0G: A Temperature Coefficient 0 ±30 ppm/℃, -55℃ to +200℃; X7R/X9U: C Temperature Coefficient ±15%, -55℃ to +125℃; (2)+15% - 56%, -55℃ to +200℃; (3)Capacitance Test (MIL-STD-202 Method 305), 25℃, 1.0±0.2 Vrms (open circuit voltage) at 1KHz; (4)Dissipation Factor 25℃, C0G: 0.15% Max @ 25℃, 1.0±0.2 Vrms (open circuit voltage) at 1KHz; X7R/X9U: 2.5% Max @ 25℃, 1.0±0.2 Vrms (open circuit voltage) at 1KHz.

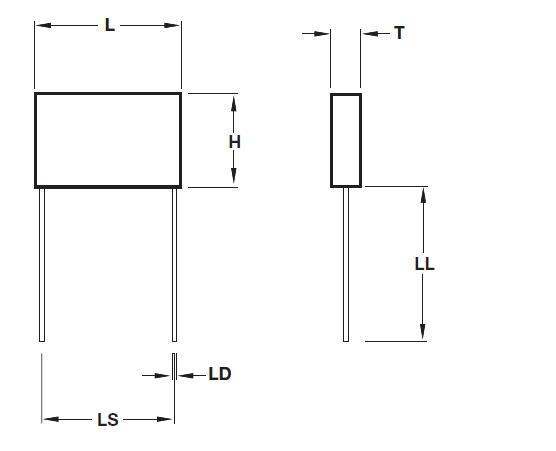

Diagrams
