Product Summary

The TPS79501DCQR is a low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in a small outline, SOT223-6, package. Each device in the family is stable with a small 1-μF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages. The applications of the TPS79501DCQR include RF: VCOs, Receivers, ADCs, Audio, Bluetooth, Wireless LAN, Cellular and Cordless Telephones, Handheld Organizers, PDAs.

Parametrics

TPS79501DCQR absolute maximum ratings: (1)VIN range: -0.3 V to 6 V; (2)VEN range: -0.3 V to VIN + 0.3 V; (3)VOUT range: 6 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)ESD rating, CDM: 500 V; (7)Continuous total power dissipation: See Dissipation Rating Table; (8)Junction temperature range, TJ: -40℃ to 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TPS79501DCQR features: (1)500-mA Low-Dropout Regulator With Enable; (2)Available in 1.6-V, 1.8-V, 2.5-V, 3-V, 3.3-V, and Adjustable (1.2-V to 5.5-V); (3)High PSRR (50 dB at 10 kHz); (4)Ultralow Noise (33 μVRMS, TPS79530); (5)Fast Start-Up Time (50 μs); (6)Stable With a 1-μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (110 mV at Full Load, TPS79530); (9)6-Pin SOT223-6 Package.

Diagrams

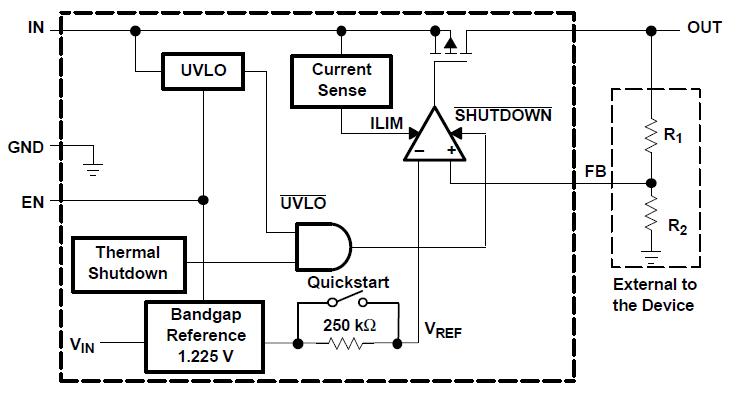

TPS79501DCQR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS79501DCQR
TPS79501DCQR
Texas Instruments
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 500-mA
Data Sheet
0-1: $1.66
1-25: $1.33
25-100: $1.21
100-250: $1.09
