Product Summary

The TPS79633DCQR is a low-dropout (LDO) low-power linear voltage regulator features high power supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in small outline, 3 × 3 SON, SOT223-6, and DDPAK-5 packages. Each device in the family is stable with a small 1mF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (e.g., 250mV at 1A). The applications of the include RF: VCOs, Receivers, ADCs, Audio, Bluetooth, Wireless LAN, Cellular and Cordless Telephones, Handheld Organizers, PDAs.

Parametrics

TPS79633DCQR absolute maximum ratings: (1)VIN range: -0.3V to 6V; (2)VEN range: -0.3V to VIN + 0.3V; (3)VOUT range: 6V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2kV; (6)ESD rating, CDM: 500V; (7)Continuous total power dissipation: See Dissipation Ratings Table; (8)Junction temperature range, TJ: -40 to +150℃; (9)Storage temperature range, Tstg -65 to +150℃.

Features

TPS79633DCQR features: (1)1A Low-Dropout Regulator With Enable; (2)Available in Fixed and Adjustable (1.2V to 5.5V) Versions; (3)High PSRR (53dB at 10kHz); (4)Ultralow-Noise (40mVRMS, TPS79630); (5)Fast Start-Up Time (50ms); (6)Stable With a 1mF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (250mV at Full Load, TPS79630); (9)3 × 3 SON, SOT223-6, and DDPAK-5 Packages.

Diagrams

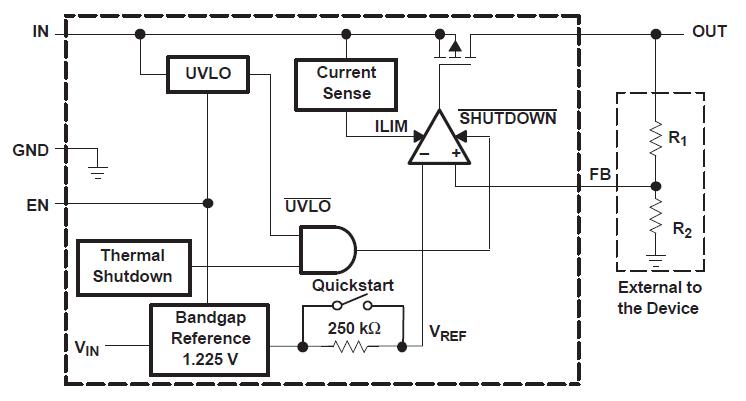

TPS79633DCQR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS79633DCQR
TPS79633DCQR
Texas Instruments
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 1A
Data Sheet
0-1: $1.60
1-25: $1.46
25-100: $1.33
100-250: $0.94
TPS79633DCQRG4
TPS79633DCQRG4
Texas Instruments
Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 1A
Data Sheet
Negotiable
