USB3316B

USB3316B, Hi-Speed USB Transceiver, QFN, SMSC Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: USB3316B

Brand:: SMSC Corporation - SMSC | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-23

From Other Seller

Part Number:USB3316B
US $2.50 - 3.00
Quantity:

piece

Product Summary

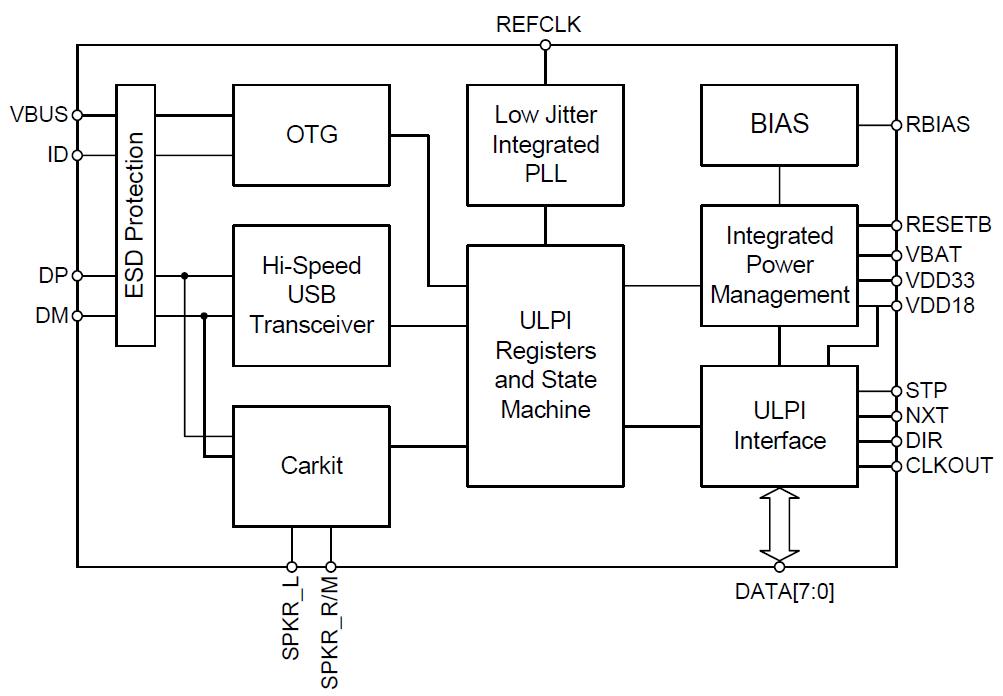

The USB3316B is a highly integrated Hi-Speed USB 2.0 Transceiver (PHY) that supports systems architectures based on a 19.2MHz reference clock. It is designed to be used in both commercial and industrial temperature applications. The USB3316B meets all of the electrical requirements to be used as a Hi-Speed USB Host, Device, or an On-the-Go (OTG) device. In addition to the supporting USB signaling the USB3316B also provides USB UART mode. and USB Audio mode. The applications of the USB3316B include Cell Phones, PDAs, MP3 Players, GPS Personal Navigation, Scanners, External Hard Drives, Digital Still and Video Cameras, Portable Media Players, Entertainment Devices, Printers, Set Top Boxes, Video Record/Playback Systems, IP and Video Phones, Gaming Consoles, POS Terminals.

Features

USB3316B features: (1)USB-IF “Hi-Speed” compliant to the Universal Serial Bus Specification Rev 2.0; (2)Interface compliant with the ULPI Specification revision 1.1 as a Single Data Rate (SDR) PHY; (3)1.8V IO Voltage (+/- 10%); (4)SMSC flexPWRTM Technology, Low current design ideal for battery powered applications; “Sleep” mode tri-states all ULPI pins and places the part in a low current state; (5)Supports FS pre-amble for FS hubs with a LS device attached (UTMI+ Level 3); (6)Supports HS SOF and LS keep-alive pulse; (7)Includes full support for the optional On-The-Go (OTG) protocol detailed in the On-The-Go Supplement Revision 1.0a specification; (8)Supports the OTG Host Negotiation Protocol (HNP) and Session Request Protocol (SRP); (9)Allows host to turn VBUS off to conserve battery power in OTG applications; (10)Support OTG monitoring of VBUS levels with internal comparators; (11)“Wrapper-less” design for optimal timing performance and design ease.
