Product Summary
The W83627HG-AW evolving product from most popular I/O family of the Winbond. The W83627HG-AW features a whole new interface, namely LPCLow Pin Countinterface, which will be supported in the next generation Intel chip-set. The W83627HG-AW provides a set of flexible I/O control functions to the system designer through a set of General Purpose I/O ports. The W83627HG-AW is made to fully comply with Microsoft PC98 and PC99 Hardware Design Guide.
Parametrics
W83627HG-AW absolute maximum ratings: (1) Power Supply Voltage 5V: -0.5V to 7.0V; (2) Input Voltage: -0.5V to VDD +0.5V; (3) RTC Battery Voltage VBAT: 2.2V to 4.0V; (4) Operating Temperature: 0°C to +70°C; (5) Storage Temperature: -55°C to +150°C.
Features
W83627HG-AW features: (1) Meet LPC Spec. 1.0 ; (2) Integrate Hardware Monitor functions; (3) Support DPM Device Power Management, ACPI; (4) Single 24 or 48 MHz clock input; (5) Compatible with IBM PC AT disk drive systems; (6) Variable write pre-compensation with track selectable capability; (7) Built-in address mark detection circuit to simplify the read electronics; (8) Two high-speed 16550 compatible UARTs with 16-byte send/receive FIFOs.

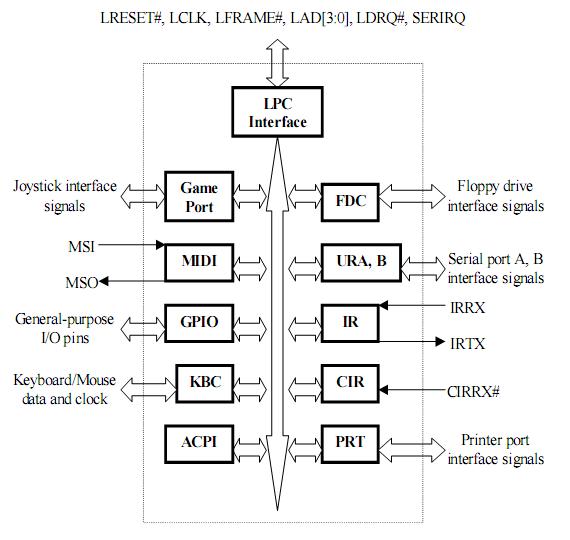

Diagrams
t=
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

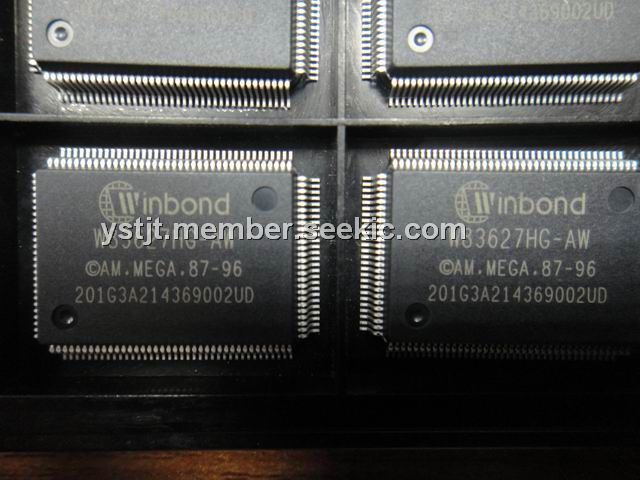

 W83627HG-AW |
|
IC LPC SUPER I/O 128-PQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
W83601G |
|
IC GP I/O SMBUS 20-SSOP |
Data Sheet |
|
|
||||||
|
W83601R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
W83602G |
|
IC GP I/O SMBUS 20-SSOP |
Data Sheet |
Negotiable |
|
||||||
|
W83602R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
W83626D |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
W83626F |
Other |
|
Data Sheet |
Negotiable |
|
||||||
