Product Summary

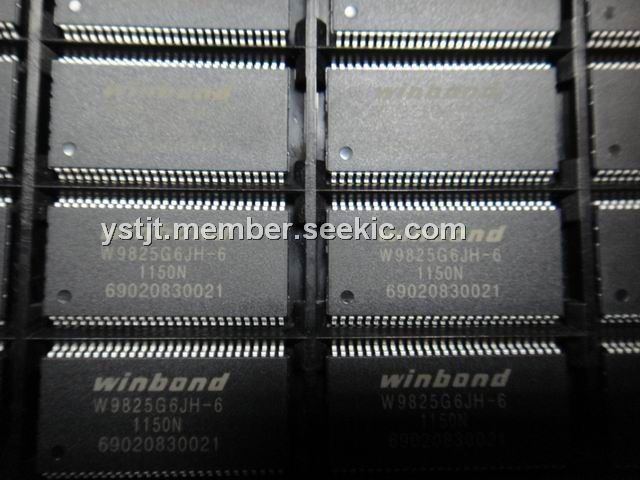

The W9825G6JH-6 is a high-speed synchronous dynamic random access memory (SDRAM), organized as 4M words × 4banks × 16 bits. The W9825G6JH-6 delivers a data bandwidth of up to 100M words per second. To fully comply with the personal computer industrial standard, it is sorted into the following speed grade: -5. The -5 grade parts is compliant to the 200MHz/CL3 specification.
Parametrics
W9825G6JH-6 absolute maximum ratings: (1)Voltage on any pin relative to VSS: -0.5 to VDD+0.5(≦4.6Vmax); (2)Voltage on VDD supply relative to Vss: -0.5 to 4.6V; (3)Operating temperature: 0 to 70℃; (4)Storage temperature: -55 to 150℃; (5)Soldering temperature: 260℃; (6)Power dissipation: 1W; (7)Short circuit output current: 50mA.
Features
W9825G6JH-6 features: (1)3.3V±0.3V power supply; (2)Up to 200MHz clock frequency; (3)4,194,304 words × 4 banks ×16 bits organization; (4)Self refresh mode: standard and low power; (5)CAS latency: 2 and 3; (6)Burst length: 1, 2, 4, 8 and full page; (7)Burst read, single writes mode; (8)Byte data controlled by LDQM, UDQM; (9)Power down mode; (10)Auto-precharge and controlled precharge; (11)8K refresh cycles/64ms.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W9825G6JH-6I |
IC SDRAM 256MBIT 54TSOPII |
Data Sheet |
|
|
||||||||||||||||||||||||
