Product Summary

The WM9713LGEFL is an AC’97 Audio + Touchpanel CODEC designed for mobile computing and communications. The WM9713LGEFL is architected for dual CODEC operation, supporting Hi-Fi stereo Codec functions via the AC link interface, and additionally supporting voice Codec functions via a PCM type Synchronous Serial Port (SSP). A third Aux DAC is provided which may be used to support generation of supervisory tones, or ring-tones etc. at different sample rates to the main codec. The applications of the include Personal Digital Assistants (PDA) with or without phone, Smartphones, Handheld and Tablet Computers.

Parametrics

WM9713LGEFL absolute maximum ratings: (1)Digital supply voltages (DCVDD, DBVDD): -0.3V to +3.63V; (2)Analogue supply voltages (AVDD, HPVDD, TPVDD): -0.3V to +3.63V; (3)Speaker supply voltage (SPKVDD): -0.3V to +4.2V; (4)Touchpanel supply voltage (TPVDD): AVDD to +0.3V; (5)Voltage range digital inputs DGND: -0.3V DBVDD to +0.3V; (6)Voltage range analogue inputs AGND: -0.3V AVDD to +0.3V; (7)Voltage range touchpanel Inputs X+, X-, Y+ and Y-: TPVDD +0.3V; (8)Voltage range touchpanel Inputs X+, X-, Y+ and Y-: AVDD +0.3V; (9)Operating temperature range, TA: -25℃ to +85℃; (10)Storage temperature (TQFP package only): -65℃ to +150℃.

Features

WM9713LGEFL features: (1)AC’97 Rev 2.2 compatible stereo codec, DAC SNR 94dB, THD-85dB; ADC SNR 87dB, THD-86dB; Variable Rate Audio, supports all WinCE sample rates; Tone Control, Bass Boost and 3D Enhancement; (2)On-chip 45mW headphone driver; (3)On-chip 400mW mono or stereo speaker drivers; (4)Stereo, mono or differential microphone input, Automatic Level Control (ALC); Mic insert and mic button press detection; (5)Auxiliary mono DAC (ring tone or DC level generation); (6)Seamless interface to wireless chipset; (7)Resistive touchpanel interface, Supports 4-wire and 5-wire panels; 12-bit resolution, INL - LSBs (<0.5 pixels); X, Y and touch-pressure (Z) measurement; Pen-down detection supported in Sleep Mode; (8)Additional PCM/I2S interface to support voice CODEC; (9)PLL derived audio clocks; (10)Supports input clock ranging from 2.048Mhz to 78.6Mhz; (11)1.8V to 3.6V supplies (digital down to 1.62V, speaker up to 4.2V); (12)7x7mm 48-pin QFN package.

Diagrams

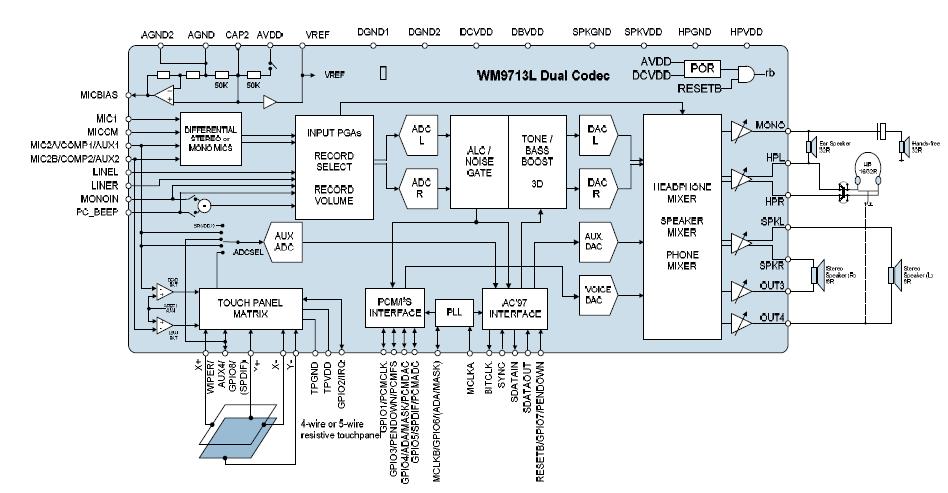

WM9713LGEFL block diagram

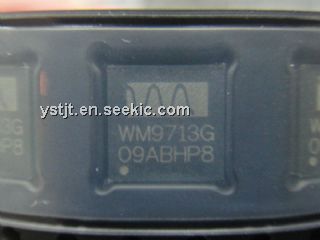

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
WM9713LGEFL/RV
WM9713LGEFL/RV

Wolfson Microelectronics

Audio CODECs Stereo AC'97 CODEC T/P Interface

Data Sheet

0-2200: $2.52
WM9713LGEFL/V
WM9713LGEFL/V

Wolfson Microelectronics

Audio CODECs Stereo AC'97 CODEC TP Interface

Data Sheet

0-1: $4.02
1-25: $3.38
25-50: $2.81
50-100: $2.65
