XR20M1172IL32-F

XR20M1172IL32-F, two channel I2C/SPI UART, QFN, 4V, 500mW, Exar Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	4.00 / Piece
301 ~ 600 :	3.80 / Piece
601 ~ 1000 :	3.50 / Piece

PartNumber:: XR20M1172IL32-F

Brand:: Exar Corporation - EXAR | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-19

From Other Seller

Part Number:XR20M1172IL32-F
US $3.50 - 4.00
Quantity:

piece

Product Summary

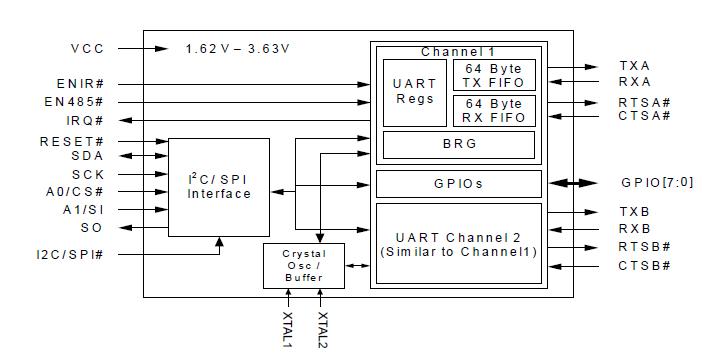

The XR20M1172IL32-F is a high performance two channel universal asynchronous receiver and transmitter (UART) with 64 byte TX and RX FIFOs and a selectable I2C/SPI slave interface. The XR20M1172IL32-F operates from 1.62 to 3.63 volts. The standard features include 16 selectable TX and RX FIFO trigger levels, automatic hardware (RTS/CTS) and software (Xon/Xoff) flow control, and a complete modem interface. Onboard registers provide the user with operational status and data error flags. The applications of the XR20M1172IL32-F include Portable Appliances, Battery-Operated Devices, Cellular Data Devices, Factory Automation and Process Controls.

Parametrics

XR20M1172IL32-F absolute maximum ratings: (1)Power Supply Range: 4 Volts; (2)Voltage at Any Pin: GND-0.3V to 4V; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -65℃ to +150℃; (5)Package Dissipation: 500 mW.

Features

XR20M1172IL32-F features: (1)1.62 to 3.6 Volt Operation; (2)Selectable I2C/SPI Interface; (3)SPI clock frequency up to 18 MHz at 3.3 V; 16 MHz at 2.5 V; 8 MHz at 1.8 V; (4)Full-featured UART, Data rate of up to 16 Mbps at 3.3 V; Data rate of up to 12.5 Mbps at 2.5 V; Data rate of up to 8 Mbps at 1.8 V; Fractional Baud Rate Generator; Transmit and Receive FIFOs of 64 bytes; 16 Selectable TX and RX FIFO Trigger Levels; Automatic Hardware (RTS/CTS) Flow Control; Automatic Software (Xon/Xoff) Flow Control; Halt and Resume Transmission Control; Automatic RS-485 Half-duplex Direction Control Output via RTS#; Wireless Infrared (IrDA 1.0 and 1.1) Encoder/Decoder; Automatic sleep mode (< 30 uA at 3.3V); General Purpose I/Os; Full modem interface; (5)Crystal oscillator (up to 24MHz) or external clock (up to 64MHz) input; (6)32-QFN and 28-TSSOP packages.
