Product Summary

The 24AA16T-I/MNY is a 16K bit electrically erasable PROM in ISO module for smart card applications. The 24AA16T-I/MNY is organized as four or eight blocks of 256 x 8-bit memory with a 2-wire serial interface. The 24AA16T-I/MNY also has a page-write capability for up to 16 bytes of data.

Parametrics

24AA16T-I/MNY absolute maximum ratings: (1)VCC: 7.0V; (2)All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V; (3)Storage temperature: -65℃ to +150℃; (4)Ambient temp. with power applied: -65℃ to +125℃; (5)Soldering temperature of leads (10 seconds): +300℃; (6)ESD protection on all pins: ≥ 4 kV.

Features

24AA16T-I/MNY features: (1)ISO 7816 compliant contact locations; (2)Single supply with operation from 2.5-5.5V; (3)Low power CMOS technology: 1 mA active current typical, 10 mA standby current typical at 5.5V; (4)Organized as 4 or 8 blocks of 256 bytes (4 x 256 x 8) or (8 x 256 x 8); (5)2-wire serial interface bus, I2C compatible; (6)Schmitt trigger inputs for noise suppression; (7)Output slope control to eliminate ground bounce; (8)100 kHz (2.5V) and 400kHz (5V) compatibility; (9)Self-timed write cycle (including auto-erase); (10)Page-write buffer for up to 16 bytes; (11)2 ms typical write cycle time for page-write; (12)ESD protection > 4,000V; (13)1,000,000 ERASE/WRITE cycles guaranteed; (14)Data retention > 200 years.

Diagrams

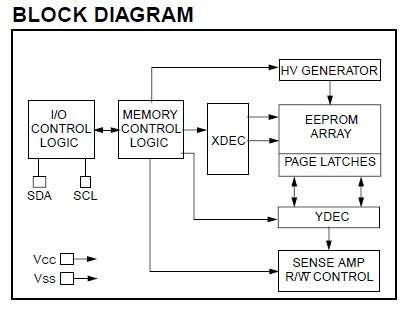

24AA16T-I/MNY pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
24AA16T-I/MNY
24AA16T-I/MNY

Microchip Technology

EEPROM 16K 2K X 8 1.8V SERIAL EE IND

Data Sheet

0-2450: $0.18
2450-3300: $0.18
