Product Summary

The 24LC02BT-I/ST is a 2 Kbit Electrically Erasable PROM. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 μA and 1 mA, respectively. The 24LC02BT-I/STalso has a page write capability for up to 8 bytes of data. The 24LC02BT-I/STis available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN, 2x3 TDFN and MSOP packages and is also available in the 5-lead SOT-23 and SC-70 packages.

Parametrics

24LC02BT-I/ST absolute maximum ratings: (1)VCC: 6.5V; (2)All inputs and outputs w.r.t. VSS: -0.3V to VCC +1.0V; (3)Storage temperature: -65℃ to +150℃; (4)Ambient temperature with power applied: -40℃ to +125℃; (5)ESD protection on all pins: ≥ 4 kV.

Features

24LC02BT-I/ST features: (1)Single Supply with Operation down to 1.7V for 24AA02 Devices, 2.5V for 24LC02B Devices; (2)Low-Power CMOS Technology: Read current 1 mA, max; Standby current 1μA, max. (I-temp); (3)2-Wire Serial Interface, I2C?Compatible; (4)Schmitt Trigger inputs for Noise Suppression; (5)Output Slope Control to eliminate Ground Bounce; (6)100 kHz and 400 kHz Clock Compatibility; (7)Page Write Time 3 ms, typical; (8)Self-Timed Erase/Write Cycle; (9)8-Byte Page Write Buffer; (10)Hardware Write-Protect; (11)ESD Protection >4,000V; (12)More than 1 Million Erase/Write Cycles; (13)Data Retention >200 Years; (14)Factory Programming Available; (15)Packages include 8-lead PDIP, SOIC, TSSOP, DFN, TDFN, MSOP, 5-lead SOT-23 and SC-70; (16)Pb-free and RoHS Compliant; (17)Temperature Ranges: Industrial (I): -40℃ to +85℃; Automotive (E): -40℃ to +125℃.

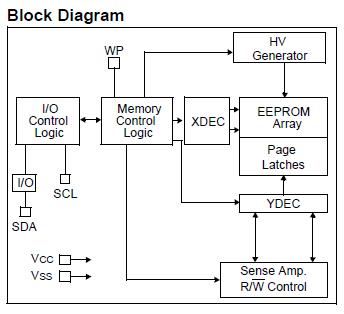

Diagrams

24LC02BT-I/ST pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
24LC02BT-I/ST
24LC02BT-I/ST
Microchip Technology
EEPROM 256x8 - 1.8V
Data Sheet
0-1: $0.20
1-10: $0.16
10-25: $0.15
25-100: $0.14
24LC02BT-I/STG
24LC02BT-I/STG
Microchip Technology
EEPROM 256x8 - 1.8V Lead Free Package
Data Sheet
Negotiable
