74LCX16240MTDX

74LCX16240MTDX, Low Voltage 16-Bit Inverting Buffer/Line Driver, TSSOP, -0.5 to +7.0V, ±100mA, Fairchild

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	4.00 / Piece
301 ~ 600 :	3.80 / Piece
601 ~ 1000 :	3.50 / Piece

PartNumber:: 74LCX16240MTDX

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-03

From Other Seller

Part Number:74LCX16240MTDX
US $3.50 - 4.00
Quantity:

piece

Product Summary

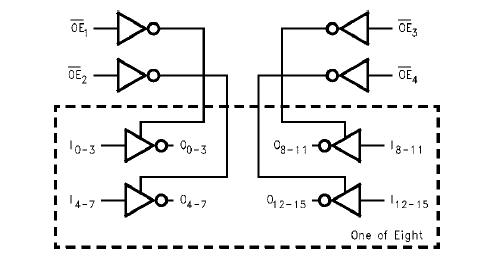

The 74LCX16240MTDX is a Low Voltage 16-Bit Inverting Buffer/Line Driver. The 74LCX16240MTDX contains sixteen inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation. The 74LCX16240MTDX is designed for low voltage (2.5V or 3.3V) VCC applications with capacity of interfacing to a 5V signal environment.

Parametrics

74LCX16240MTDX absolute maximum ratings: (1)VCC, Supply Voltage: -0.5 to +7.0 V; (2)VI, DC Input Voltage: -0.5 to +7.0 V; (3)VO, DC Output Voltage: -0.5 to +7.0V; -0.5 to VCC +0.5, Output in HIGH or LOW State; (4)IIK, DC Input Diode Current: -50mA, VI <& GND; (5)IOK, DC Output Diode Current: -50mA, VO <& GND; +50mA, VO > VCC; (6)IO, DC Output Source/Sink Current: ±50 mA; (7)ICC, DC Supply Current per Supply Pin: ±100 mA; (8)IGND, DC Ground Current per Ground Pin: ±100 mA; (9)TSTG, Storage Temperature: -65 to +150℃.

Features

74LCX16240MTDX features: (1)5V tolerant inputs and outputs; (2)2.3V to 3.6V VCC specifications provided; (3)4.5 ns tPD max (VCC = 3.3V), 20 PA ICC max; (4)Power down high impedance inputs and outputs; (5)Supports live insertion/withdrawal (Note 1); (6)r24 mA output drive (VCC 3.0V); (7)Implements patented noise/EMI reduction circuitry; (8)Latch-up performance exceeds 500 mA; (9)ESD performance: Human body model > 2000V; Machine model > 200V.
