74LVT16244MTDX

74LVT16244MTDX, Low Voltage16-Bit Buffer/Line Driver, TSSOP, -0.5 to +4.6 V, 128mA, Fairchild

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	4.00 / Piece
301 ~ 600 :	3.80 / Piece
601 ~ 1000 :	3.50 / Piece

PartNumber:: 74LVT16244MTDX

Brand:: Fairchild Semiconductor - Fairchild | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-03

From Other Seller

Part Number:74LVT16244MTDX
US $3.50 - 4.00
Quantity:

piece

Product Summary

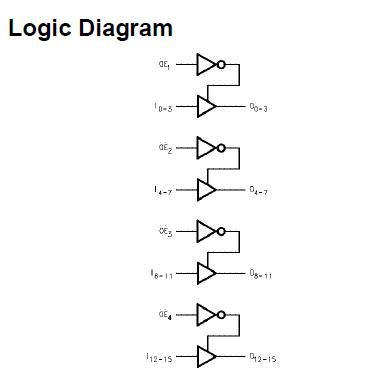

The 74LVT16244MTDX is a Low Voltage16-Bit Buffer/Line Driver. The 74LVT16244MTDX contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver. The device is nibble controlled. Individual 3-STATE control inputs can be shorted together for 8-bit or 16-bit operation. The 74LVT16244MTDX data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.

Parametrics

74LVT16244MTDX absolute maximum ratings: (1)VCC, Supply Voltage: -0.5 to +4.6 V; (2)VI, DC Input Voltage: -0.5 to +7.0 V; (3)VO, Output Voltage: -0.5 to +7.0V, Output in 3-STATE; -0.5 to +7.0V Output in HIGH or LOW State (Note 4); (4)IIK, DC Input Diode Current: -50mA; VI <& GND mA; (5)IOK, DC Output Diode Current: -50mA; VO <& GND ; (6)IO, DC Output Current: 64mA, VO > VCC Output at HIGH State; 128mA, VO > VCC Output at LOW State; (7)ICC, DC Supply Current per Supply Pin: ±64 mA; (8)IGND, DC Ground Current per Ground Pin: ±128 mA; (9)TSTG, Storage Temperature: -65 to +150℃.

Features

74LVT16244MTDX features: (1)Input and output interface capability to systems at 5V VCC; (2)Bushold data inputs eliminate the need for external; (3)pull-up resistors to hold unused inputs (74LVTH16244), also available without bushold feature (74LVT16244).; (4)Live insertion/extraction permitted; (5)Power Up/Down high impedance provides glitch-free bus loading; (6)Outputs source/sink -32 mA/+64 mA; (7)Functionally compatible with the 74 series 16244; (8)Latch-up performance exceeds 500 mA; (9)ESD performance: Human-body model>2000V, Machine model>200V, Charged-drive model>1000V; (10)Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA).
