Product Summary
The AAT1415A is an integrated 5-channel pulse-width-modulation (PWM) solution and a low noise LDO for the power supply of DC-DC converter. The AAT1415A improves performance and size compared to conventional controllers in battery design. It has three current mode PWM converters (CH1, CH2, and CH3) and two voltage mode PWM converters (CH4 and CH5). Each current-mode channel has on-chip synchronous power FETs. It is ideal for: (1)Digital Still Cameras; (2)Digital Videos; (3)PDAs; (4)Portable Devices.
Parametrics
AAT1415A absolute maximum ratings: (1)Supply Voltage (VDD)VMDD: –0.3 to + 6.0 V; (2)Pin Voltage 1 I1 V: –0.3 to + 6.0 V; (3)Pin Voltage 2VI2: –0.3 to (VDD + 0.3)V; (4)Pin Voltage 3 (OUT5)VI3: –0.3 to (VDD5 + 0.3)V; (5)Pin Voltage 4 (OUT4)VI4: –0.3 to (VDD + 0.3)V; (6)Pin Voltage 5 (V2P5)VI5: –0.3 to (VDDC + 0.3)V; (7)Pin Voltage 6 (GND_)VI6: 0.3 to + 0.3 V; (8)Input Voltage 7 (SW1)VI7: –0.3 to (OUT1 + 0.3)V; (9)Input Voltage 8 (SW2)VI8: –0.3 to (OUT2 + 0.3)V; (10)Input Voltage 9 (SW3)VI9: –0.3 to (OUT3 + 0.3)V; (11)SW1 Current ISW1: 3.6 A; (12)SW2 Current ISW2: 3.6 A; (13)SW3 Current ISW3: 3.6 A; (14)Open Drain NMOS Current (C3RDY, C4RDY)IOD: 10 mA; (15)Operating Temperature Range TC: –40 °C to + 85 °C ; (16)Storage Temperature Range TSTORAGE: –65 °C to + 150 °C .
Features
AAT1415A features: (1)Complete PWM Power Control Circuitry; (2)Input Voltage Range: 1.5 to 5.5V; (3)Low Start-Up Voltage: 1.2V; (4)Independent On / Off Control for All Channels; (5)Internal Soft-Start for All Channels; (6)Power-OK Outputs & Overload Protection; (7)Adjustable Operation Frequency with External Components Ranging from 100kHz to 1MHz VQFN-40 5*5 Package Available.

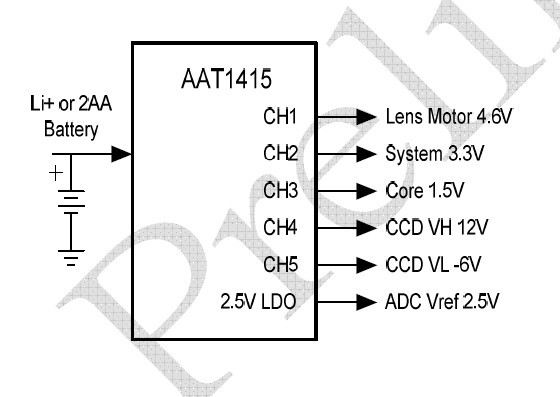

Diagrams
