Product Summary
The ACM2012-900 is a common mode choke coil for single line SMD. Applications of the ACM2012-900 include: Used for radiation noise suppressuon for any electronic devices, Used to counter common-mode noise affectiong signals within high speed lines, USB line for personal computers and perpheral equipment, IEEE1994 line for personal computers, DVC, STB, etc and LVDS, panel link line for liquid crstal display panels.
Parametrics
ACM2012-900 absolute maximum ratings: (1) Impedence: 90MHz; (2) DC resistance: 0.19Ω; (3) Rated voltage: 50V; (4) Rated current: 0.4A.
Features
ACM2012-900 features: (1) Although greatly miniaturize, this wire-wound chip-type filter; (2)almost no effect upon even high speed signals since differential mode impedance is kept low; (3) this series includes both 2-lines and 3-line types. They are used for various types of circuits and noise.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ACM2012-900-2P |
TDK |
EMI Filters 90ohms 100MHz 50volts |
Data Sheet |
Negotiable |
|
||||||||||||
|
ACM2012-900-2P-T |
TDK |
EMI Filters 90ohms @ MHz 0.4A 2 mm x 1.2 mm |
Data Sheet |
|
|
||||||||||||
|

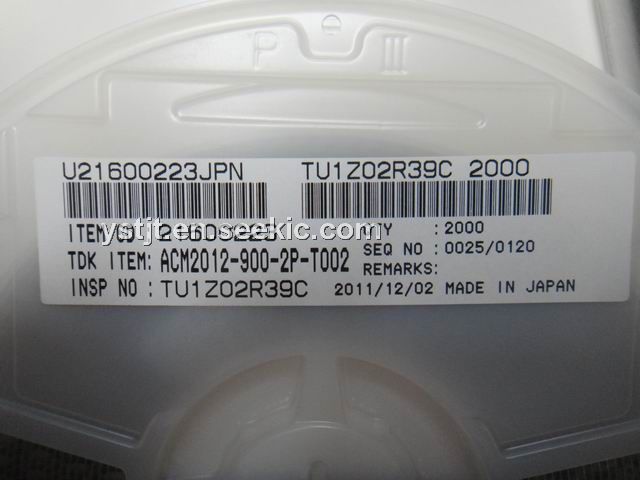

ACM2012-900-2P-T002 |
TDK |
EMI Filters 90ohms |
Data Sheet |
|
|
||||||||||||
|
ACM2012-900-2P-T001 |
TDK |
EMI Filters 90ohms 190mohms 400A |
Data Sheet |
|
|
||||||||||||
