Product Summary

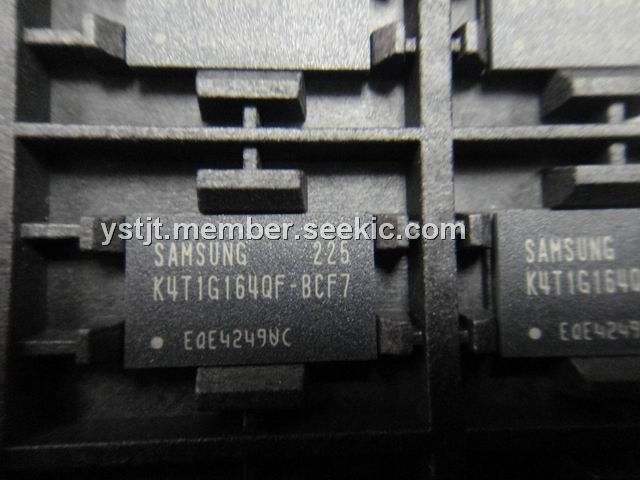

The K4T1G164QF-BCF7 is a 1Gb DDR2 SDRAM. It is organized as a 32Mbit ×4 I/Os × 8banks, 16Mbit × 8 I/Os × 8banks or 8Mbit × 16 I/Os × 8 banks device. This synchronous device K4T1G164QF-BCF7 achieves high speed double-data-rate transfer rates of up to 800Mb/sec/pin (DDR2-800) for general applications. The K4T1G164QF-BCF7 is designed to comply with the following key DDR2 SDRAM features such as posted CAS with additive latency, write latency = read latency - 1, Off-Chip Driver(OCD) impedance adjustment and On Die Termination.
Parametrics
K4T1G164QF-BCF7 absolute maximum ratings: (1)Voltage on VDD pin relative to VSS: -1.0 V ~ 2.3 V; (2)Voltage on VDDQ pin relative to VSS: - 0.5 V ~ 2.3 V; (3)Voltage on VDDL pin relative to VSS: - 0.5 V ~ 2.3 V; (4)Voltage on VDDL pin relative to VSS: - 0.5 V ~ 2.3 V; (5)Voltage on any pin relative to VSS: - 0.5 V ~ 2.3 V; (6)Storage Temperature: -55 to +100°C.
Features
K4T1G164QF-BCF7 features: (1)JEDEC standard VDD = 1.8V ± 0.1V Power Supply; (2)VDDQ = 1.8V ± 0.1V; (3)333MHz fCK for 667Mb/sec/pin, 400MHz fCK for 800Mb/sec/pin; (4)8 Banks ; (5)Posted CAS; (6)Programmable CAS Latency: 3, 4, 5, 6; (7)Programmable Additive Latenc y: 0, 1, 2, 3, 4, 5; (8)Write Latency(WL) = Read Latency(RL) -1; (9)Burst Length: 4 , 8(Interleave/nibble sequential); (10)Programmable Sequential / Interleave Burst Mode; (11)Bi-directional Differential Data-Strobe (Single-ended data-strobe is an optional feature); (12)Off-Chip Driver(OCD) Impedance Adjustment ; (13)On Die Termination; (14)Special Function Support; (15)All of products are Lead-Free, Halogen-Free, and RoHS compliant.

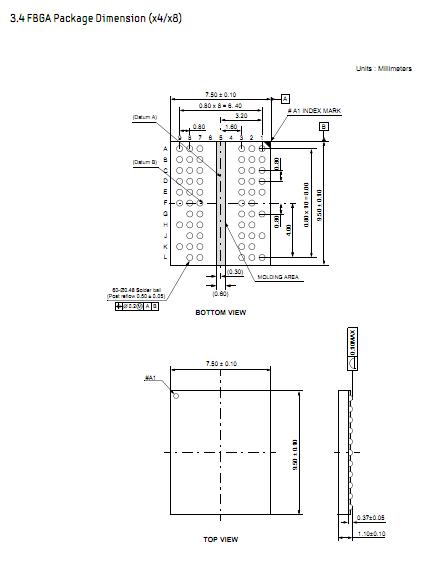

Diagrams
 |
