Product Summary
The AM29LV010B-90EC is a 1 Mbit, 3.0 Volt-only Flash memory device organized as 131,072 bytes. The AM29LV010B-90EC has a uniform sector architecture. The device is offered in 32-pin PLCC and 32-pin TSOP packages. The byte-wide (x8) data appears on DQ7-DQ0. All read, erase, and program operations are accomplished using only a single power supply. The device can also be programmed in standard EPROM programmers.
Parametrics
AM29LV010B-90EC absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground; (4)All pins except A9 and OE#: -0.5 V to VCC+0.5 V; VCC: -0.5 V to +4.0 V; A9 and OE#: -0.5 V to +12.5 V; (5)Output Short Circuit Current: 200 mA.
Features
AM29LV010B-90EC features: (1)Single power supply operation, Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; Regulated voltage range: 3.0 to 3.6 volt read and write operations and for compatibility with high performance 3.3volt microprocessors; (2)Manufactured on 0.32 μm process technology; (3)High performance, Full voltage range: access times as fast as 55 ns; (4)Ultra low power consumption (typical values at 5 MHz), 200 nA Automatic Sleep mode current; 200 nA standby mode current; 7 mA read current; 15 mA program/erase current; (5)Flexible sector architecture, Eight 16 Kbyte; Supports full chip erase; Sector Protection features: Hardware method of locking a sector to prevent any program or erase operations within that sector Sectors can be locked in-system or via programming equipment Temporary Sector Unprotect feature allows code changes in previously locked sectors.

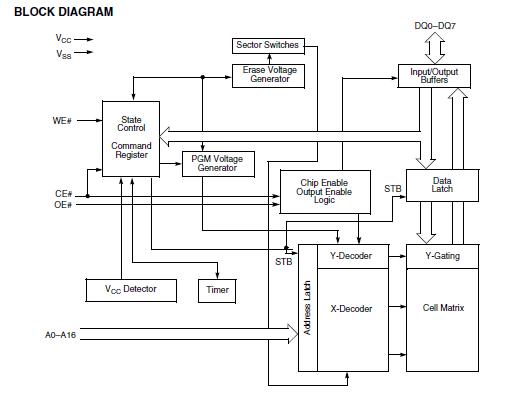

Diagrams
