Product Summary
The AM29LV320DB-120EI is a 32 megabit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. The AM29LV320DB-120EI is designed to be programmed in system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The AM29LV320DB-120EI requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
Parametrics
AM29LV320DB-120EI absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V, A9, OE#, RESET#, and WP#/ACC: –0.5 V to +12.5 V, All other pins: -0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29LV320DB-120EI features: (1)Sophisticated power management circuits reduce power consumed during inactive periods to nearly zero; (2)Sector Architecture: Eight 8 Kbyte sectors, Sixty-three 64 Kbyte sectors; (3)Top or bottom boot block ; (4)Manufactured on 0.23 μm process technology; (5)Compatible with JEDEC standards: Pinout and software compatible with single-power-supply flash standard; (6)Access time as fast 90 ns ; (7)Program time: 7μs/word typical utilizing Accelerate function; (8)2 mA active read current at 1 MHz; (9)10 mA active read current at 5 MHz; (10)200 nA in standby or automatic sleep mode; (11)Minimum 1 million erase cycles guaranteed per sector; (12)20 Year data retention at 125℃: Reliable operation for the life of the syste; (13)Supports Common Flash Memory Interface ; (14)(CFI); (15)Erase Suspend/Erase Resume: Suspends erase operations to allow programming in non-suspended sectors; (16)Data# Polling and Toggle Bits: Provides a software method of detecting the status of program or erase cycles; (17)Unlock Bypass Program command: Reduces overall programming time when issuing multiple program command sequences.

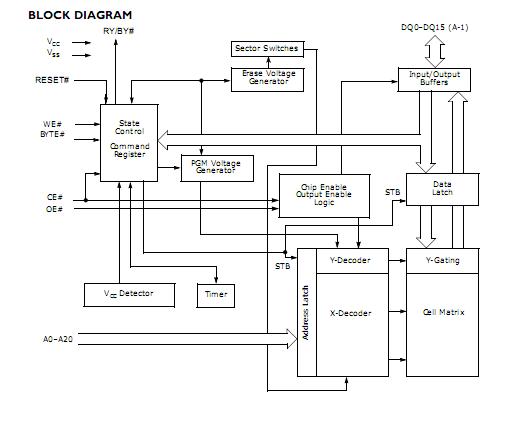

Diagrams
