Product Summary

The AM29LV800BB-90EC is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288
words. The AM29LV800BB-90EC is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The AM29LV800BB-90EC is also available in Known Good Die (KGD) form. The AM29LV800BB-90EC is manufactured using AMD 0.32 µm process technology, and offers all the features and benefits of the Am29LV800, which was manufactured using 0.5 µm process technology.

Parametrics

AM29LV800BB-90EC absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65 ° C to +150° C; (2) Ambient Temperature with Power Applied: -65 ° C to +125° C; (3) Output Short Circuit Current: 200mA; (4) Voltage with Respect to Ground: VCC -0.5 V to +4.0V; (5) RESET#: -0.5 V to +12.5 V.

Features

AM29LV800BB-90EC features: (1) Single power supply operation; (2) Ultra low power consumption (typical values at 5 MHz) ; (3) Flexible sector architecture; (4) Unlock Bypass Program Command; (5) Top or bottom boot block configurations available; (6) Embedded Algorithms; (7) Compatibility with JEDEC standards; (8) Erase Suspend/Erase Resume.

Diagrams

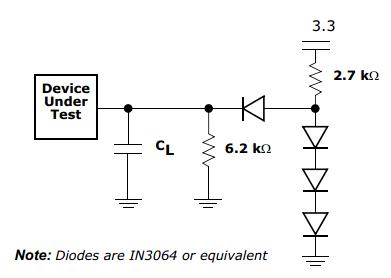

AM29LV800BB-90EC Circuit
