Product Summary
The BCM2055KFBG is an Intensi-fi Gigabit Ethernet Draft-802.11n Processor. It integrates a powerful 300 MHz/500 DMIPS (*estimated) MIPS32 core with 4-way set associative 32 KB instruction cache, a 32 KB 2-way set associative data cache, and a 4 KB prefetch cache. An enhanced 10/100/1000 Gigabit Ethernet MAC controller with TCP Segmentation and checksum Offload (TSO) hardware acceleration engine substantially enhances system throughput.
Features
BCM2055KFBG features: (1)Advanced 500 DMIPS/300-MHz MIPS3 core, 4-way set associative 32-KB I-Cache; 2-way set associative 32-KB D-Cache; 4-KB Read-Ahead Cache; MMU/TLB support for Linux Advanced Gigabit Ethernet MAC, Hardware TCP segmentation and Checksum offload; GMII, RGMII, and MII PHY connectivity; (2)Two USB2.0 High-speed host ports, One USB2.0 High-speed device port; (3)DDR SDRAM controller, 16/32-bit DDR266 and 133-MHz SDRAM support; 8 MB to 512 MB capacity; Support for 8/16/32-bit wide memory devices; (4)PCI 2.3 Host interface (32 bit/33-37 MHz), Supports four PCI bus masters; Optional 5V-tolerant operation (PCI 2.2 support); (5)Advanced GPIO interface, All GPI supports interrupt triggering capability; (6)Dual RS232 UART; (7)2.4W Low-power design.

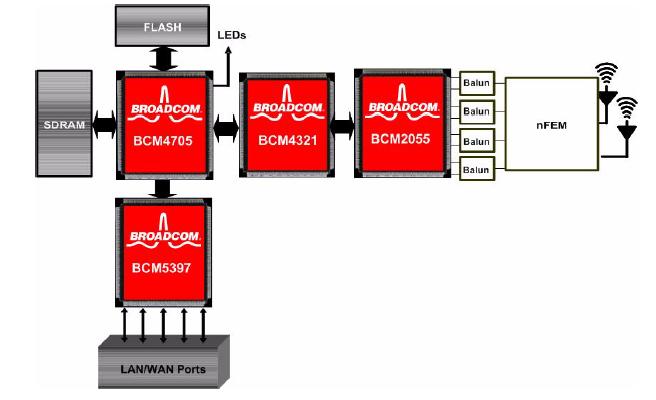

Diagrams
