Product Summary

The BCM6338KFBG is a transceiver. The BCM6338KFBG combines an ADSL2+ transceiver and analog front end (AFE) with a high-performance MIPS32 CPU, a 10/100 Ethernet interface, and a USB 1.1 interface into a single high-performance, cost-effective monolithic device. The BCM6338KFBG transceiver delivers 29 Mbps downstream and 3 Mbps upstream, dual-latency framing, and embedded operations channels for remote management of the customer premises equipment (CPE).

Parametrics

BCM6338KFBG absolute maximum ratings: (1)High-performance 280DMIPS MIPS32 CPU supports wire-speed bridging and routing and advanced applications such as TR-69 or SNMP-based remote management.; (2)Embedded 10/100-Mbps Ethernet MAC with MII and 10/100 Mbps Ethernet PHY interface with Auto-MDIX to reduce customer support; (3)Concurrent Ethernet and USB 1.1 interfaces enabling simple plug and play connection of multiple PCs and other peripheral devices; (4)Support for industry-standard toolchains and operating systems, including Linux, WinCE, VxWorks,and eCOS; (5)Consistent, field-hardened software platform across all Broadcom CPE gateway devices.

Features

BCM6338KFBG features: (1)Single-chip ADSL2+ bridge/router solution with seamless, multiuser support of Ethernet and USB home LAN technologies; (2)G.992.1, G.992.2, G.992.3, G.992.5, and T1 413-compliant ADSL2+ transceiver and AFE with worldwide support for Annexes A, B C, M, and L; (3)High-performance 280DMIPS MIPS32 CPU supports wirespeed bridging and routing and advanced applications such as TR-69 or SNMP-based remote management; (4)Embedded 10/100-Mbps Ethernet MAC with MII and 10/100 Mbps Ethernet PHY interface with Auto-MDIX to reduce customer support.

Diagrams

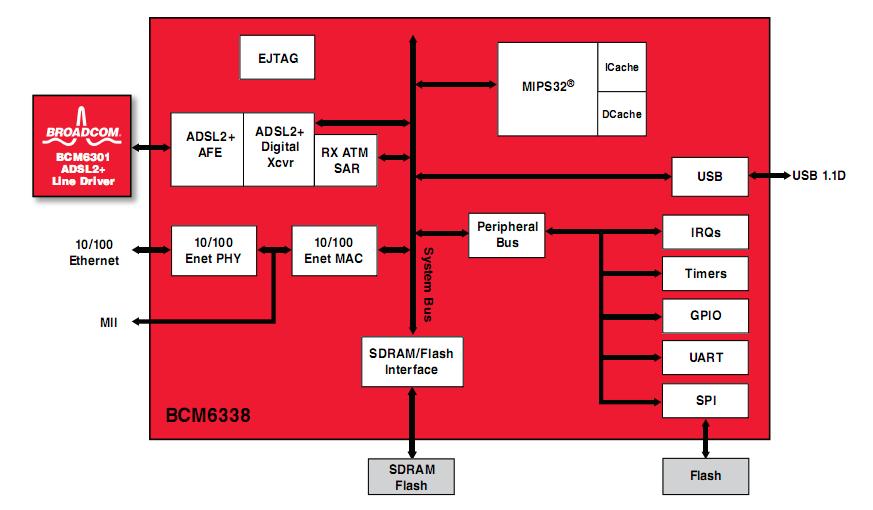

BCM6338KFBG block diagram
