Product Summary

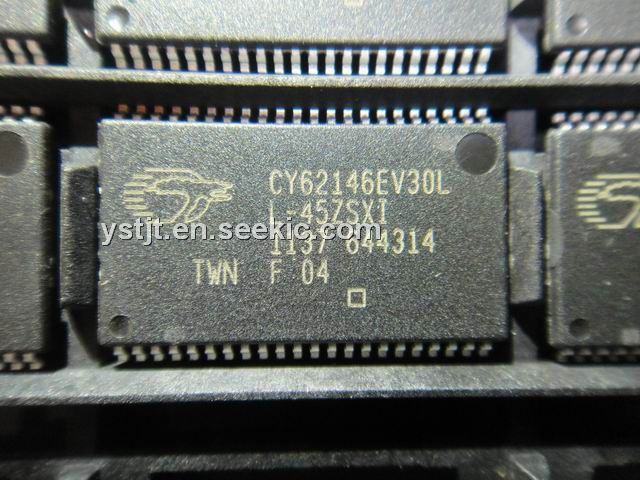

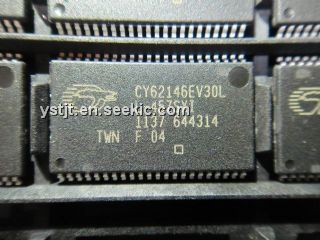

The CY62146EV30LL-45ZSXI is a high performance CMOS static RAM organized as 256K words by 16 bits. The CY62146EV30LL-45ZSXI features advanced circuit design to provide ultra low active current. The CY62146EV30LL-45ZSXI also has an automatic power down feature that significantly educes power consumption by 80% when addresses are not toggling.

Parametrics

CY62146EV30LL-45ZSXI absolute maximum ratings: (1) Storage Temperature: -65°C to +150°C; (2) Ambient Temperature with Power Applied: -55°C to +125°C; (3) Supply Voltage to Ground Potential: -0.3V to + 3.9V ( Vccmax + 0.3V) ; (4) DC Voltage Applied to Outputs n High-Z State: -0.3V to 3.9V (Vccmax +0.3V) ; (5) DC Input Voltage: -0.3V to 3.9V (Vccmax +0.3V) ; (6) Output Current into Outputs (LOW) :20mA; (7) Static Discharge Voltage: >2001V; (8) Latch-up Current: >200mA.

Features

CY62146EV30LL-45ZSXI features: (1) very high speed: 45ns; (2) Wide voltage range: 2.20V-3.60V; (3) Pin compatible with CY62146DV30; (4) Ultra low standby power; (5) Easy memory expansion with CE, and OE features; (6) Automatic power down when deselected; (7) CMOS for optimum speed and power; (8) Available in a Pb-free 48-ball VFBGA and 44-pin TSOP II packages.

Diagrams

CY62146EV30LL-45ZSXI Block Diagram=

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CY62146EV30LL-45ZSXI
CY62146EV30LL-45ZSXI
Cypress Semiconductor
SRAM 4M Ultra LO Pwr HI SPD Micropwr IND
Data Sheet
0-1: $4.55
1-25: $3.94
25-100: $3.73
100-250: $3.10
CY62146EV30LL-45ZSXIT
CY62146EV30LL-45ZSXIT
Cypress Semiconductor
SRAM 4M Ultra LO Pwr HI SPD Micropwr IND
Data Sheet
0-715: $2.90
715-1000: $2.80
1000-2000: $2.69
