Product Summary
The FTRJ8519P1BNL-HW is a Small Form Factor (SFF) transceiver comply with the 2x5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA)1. The FTRJ8519P1BNL-HW is simultaneously compatible with Gigabit Ethernet as specified in IEEE Draft P802.3z/D5.02 and Fibre Channel FC-PH, PH2, PH33 and FC-PI 13.04. The applications of the include 1.25 Gb/s 1000Base-LX Ethernet, Dual Rate 1.063 / 2.125 Gb/s Fibre Channel. The applications of the include 1.25 Gb/s 1000Base-LX Ethernet, Dual Rate 1.063 / 2.125 Gb/s Fibre Channel.
Parametrics
FTRJ8519P1BNL-HW absolute maximum ratings: (1)Maximum Supply Voltage, Vcc: 0.5 to 5.0 V; (2)Storage Temperature, TS: -40 to 85℃; (3)Case Operating Temperature, TA: -40 to 85℃; (4)Relative Humidity, RH: 0 to 85 %; (5)Lead Soldering Temperature/Time: 260/10℃/s.
Features
FTRJ8519P1BNL-HW features: (1)Up to 2.125Gb/s bi-directional data links; (2)Standard 2x5 pin SFF footprint (MSA compliant); (3)1310nm Fabry-Perot laser transmitter; (4)Duplex LC connector; (5)Very low jitter; (6)Up to 10 km on 9/125μm SMF; (7)Metal enclosure, for lower EMI; (8)Single 3.3V power supply; (9)Low power dissipation <700mW; (10)Industrial operating temperature range: -40℃ to 85℃.

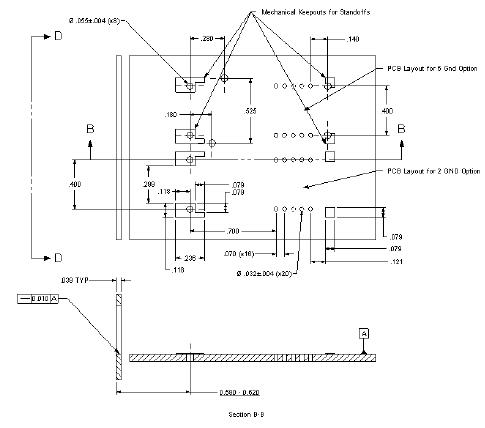

Diagrams
