Product Summary
The H26M31001FPR is a high accurate, low noise, high ripple rejection, and low dropout CMOS Dual regulator with GreenOperation function. The series includes a reference voltage source, an error amplifier, a current limiter, and a phase compensation circuit. It is ideal for: (1)Mobile phones; (2)Cordless phones, wireless communication equipment; (3)Portable games; (4)Cameras, video recorders; (5)Portable audio equipment; (6)PDAs.
Parametrics
H26M31001FPR absolute maximum ratings: (1)input voltage vin: - 0.3 ~ + 6.5 v; (2)output current iout1+iout2: 500 ma; (3)output voltage 1 / output voltage 2 vout1 /vout2: vss - 0.3 vin + 0.3 v; (4)en1 en2 input voltage ven1 /ven2: vss - 0.3 ~ + 6.5 v; (5)power dissipation 1000 (pcb mounted)(*2)sot-26 pd: 250 mw; (6)operating temperature range topr: - 40 ~ + 85°C; (7)storage temperature range tstg: - 55 ~ + 125°C.
Features
H26M31001FPR features: (1)maximum output current : 200ma (300ma limit, typ.); (2)dropout voltage : 95mv@iout=100ma, vout=3.0v; (3)operating voltage range : 1.5v~6.0v; (4)output voltage range : 0.8v~4.0v (0.05v increments)high output accuracy : ±1% <xc6416a/b/c/d in hs mode> ±0.02v @ vout1.95v; ±2% <xc6416e/f/g/h in hs mode>; ±0.03v @ vout.45v; ±3% <xc6416a~h in ps mode>; ±0.06v @ vout1.95v.; (5)low power consumption : 5a/ch @ps mode (typ.); (6)28a/ch@ hs mode (typ.); (7)stand-by current : less than 0.1a; (8)ripple rejection rate : 60db @ 1khz; (9)operating temperature range: - 40oc ~ 85oc; (10)low esr capacitor : 1.0f ceramic capacitor compatible; (11)small packages : usp-6c, sot-26.

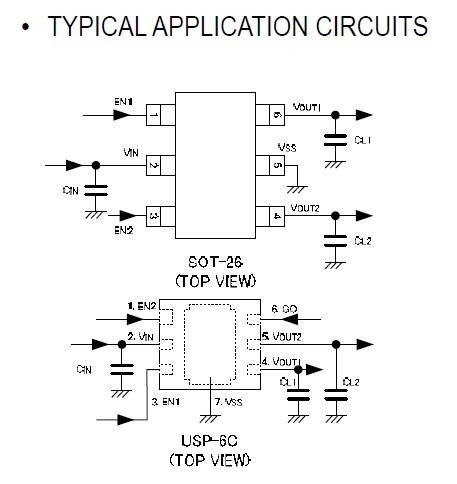

Diagrams
