Product Summary
The HLMP-1401 is a T-1 (3 mm) Diffused LED Lamp which widely used in general purpose indicator applications. Diffusants, tints, and optical design are balanced to yield superior light output and wide viewing angles. Several intensity choices are available in each color for increased design flexibility.
Parametrics
HLMP-1401 absolute maximum ratings: (1)Peak Forward Current: 90 mA; (2)Average Forward Current: 25 mA; (3)DC Current[2]: 30 mA; (4)Reverse Voltage (IR = 100 mA): 5 V; (5)Transient Forward Current(10 msec Pulse): 500 mA; (6)LED Junction Temperature: 110℃; (7)Operating Temperature Range: -20 to +100℃; (8)Storage Temperature Range: -55 to +100℃.
Features
HLMP-1401 features: (1)High Intensity; (2)Choice of 4 Bright Colors, High Efficiency Red; Orange; Yellow; High Performance Green; (3)Popular T-1 Diameter Package; (4)Selected Minimum Intensities; (5)Wide Viewing Angle; (6)General Purpose Leads; (7)Reliable and Rugged; (8)Available on Tape and Reel.

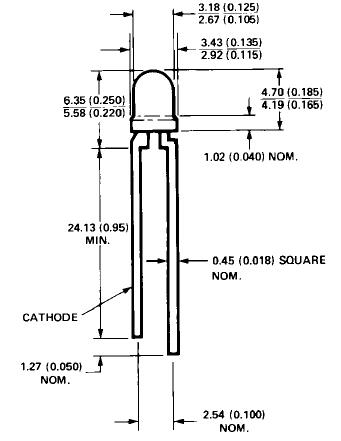

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HLMP-1401 |
Avago Technologies |
Standard LED - Through Hole Yellow Diffused 585nm 2.2mcd |
Data Sheet |
|
|
||||||||||||
|
HLMP-1401-D0002 |
Avago Technologies |
Standard LED - Through Hole GaP Yellow |
Data Sheet |
|
|
||||||||||||
|
HLMP-1401-D00A1 |
Avago Technologies |
Standard LED - Through Hole Yellow Diffused 585nm 3.6mcd |
Data Sheet |
|
|
||||||||||||
|
HLMP-1401-E0000 |
Avago Technologies |
Standard LED - Through Hole Lamp Yellow |
Data Sheet |
|
|
||||||||||||
|
HLMP-1401-D00A2 |
Avago Technologies |
Standard LED - Through Hole Yellow Diffused 585nm 3.6mcd |
Data Sheet |
|
|
||||||||||||
|
HLMP-1401-E00FG |
Avago Technologies |
Standard LED - Through Hole GaP Yellow |
Data Sheet |
Negotiable |
|
||||||||||||
|
HLMP-1401-EF000 |
Avago Technologies |
Standard LED - Through Hole GaP Yellow |
Data Sheet |
|
|
||||||||||||
