Product Summary

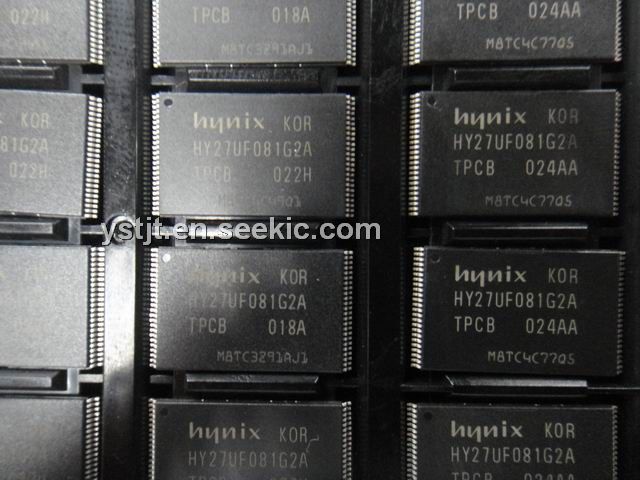

The HY27UF081G2A-TPCB is a 128Mx8bit with spare 4Mx8 bit capacity. The HY27UF081G2A-TPCB is offered in 3.3V Vcc Power Supply. NAND cell of the HY27UF081G2A-TPCB provides the most cost-effective solution for the solid state mass storage market.This feature of the HY27UF081G2A-TPCB allows to dramatically improve the read throughput when consecutive pages have to be streamed out.
Parametrics
HY27UF081G2A-TPCB absolute maximum ratings: (1) Ambient Operating Temperature (Temperature Range Option 1) TA: 0°C to 70°C, Ambient Operating Temperature (Industrial Temperature Range) TA: -40°C to +85°C; (2) Temperature Under Bias TBIAS： -50°C to 125°C; (3) Storage Temperature TSTG: -65°C to +150°C; (4) Input or Output Voltage VIO: -0.6V to 4.6V; (6) Supply Voltage VCC: -0.6V to 4.6V.
Features
HY27UF081G2A-TPCB features: (1) Cost effective solutions for mass storage applications; (2) Multiplexed Address/ Data; (3) Random access: 25us (max.) ; (4) Internal (2048+64) Byte buffer to improve the program throughput; (5) Simple interface sith microcontroller; (6) FAST BLOCK ERASE.

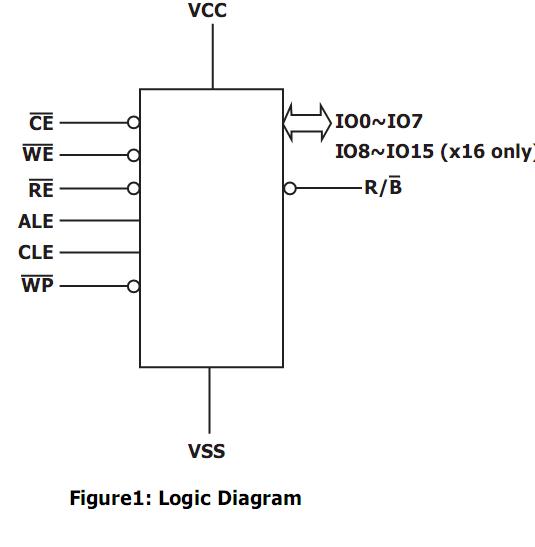

Diagrams
lt=
