Product Summary

The IDG2000 is a voltage controlled crystal oscillator (VCXO). The IDG2000 provides ultra high frequency with a single-ended sine-wave output. The IDG2000 is based on low noise analog harmonic frequency multiplication, providing exceptionally low Phase Noise and Jitter. It is packaged in a miniature, FR-4 based 9x14mm SMD package.

Parametrics

IDG2000 absolute maximum ratings: (1)operating temperature range to: -40 to +85°C; (2)storage temperature range tst: -50 to +90 °C; (3)supply voltage vcc: -0.5 to 4.5 v; (4)nominal frequency fo: 200 to 1000 mhz; (5)Supply Voltage Vcc Code: 4.75 to 5.25 V; (6).

Features

IDG2000 features: (1)Wide frequency range – 200.0MHz to 1.000GHz; (2)Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH; (3)High Reliability - NEL HALT/HASS qualified for crystal oscillator start-up conditions; (4)Extremely Low Phase Noise and Jitter; (5)High shock resistance, to 1000g; (6)Absolute Pull Range (APR)to ±1000 ppm; (7)SONET ±20 ppm overall free-run stability available; (8)RoHS Compliant, Lead Free Construction.

Diagrams

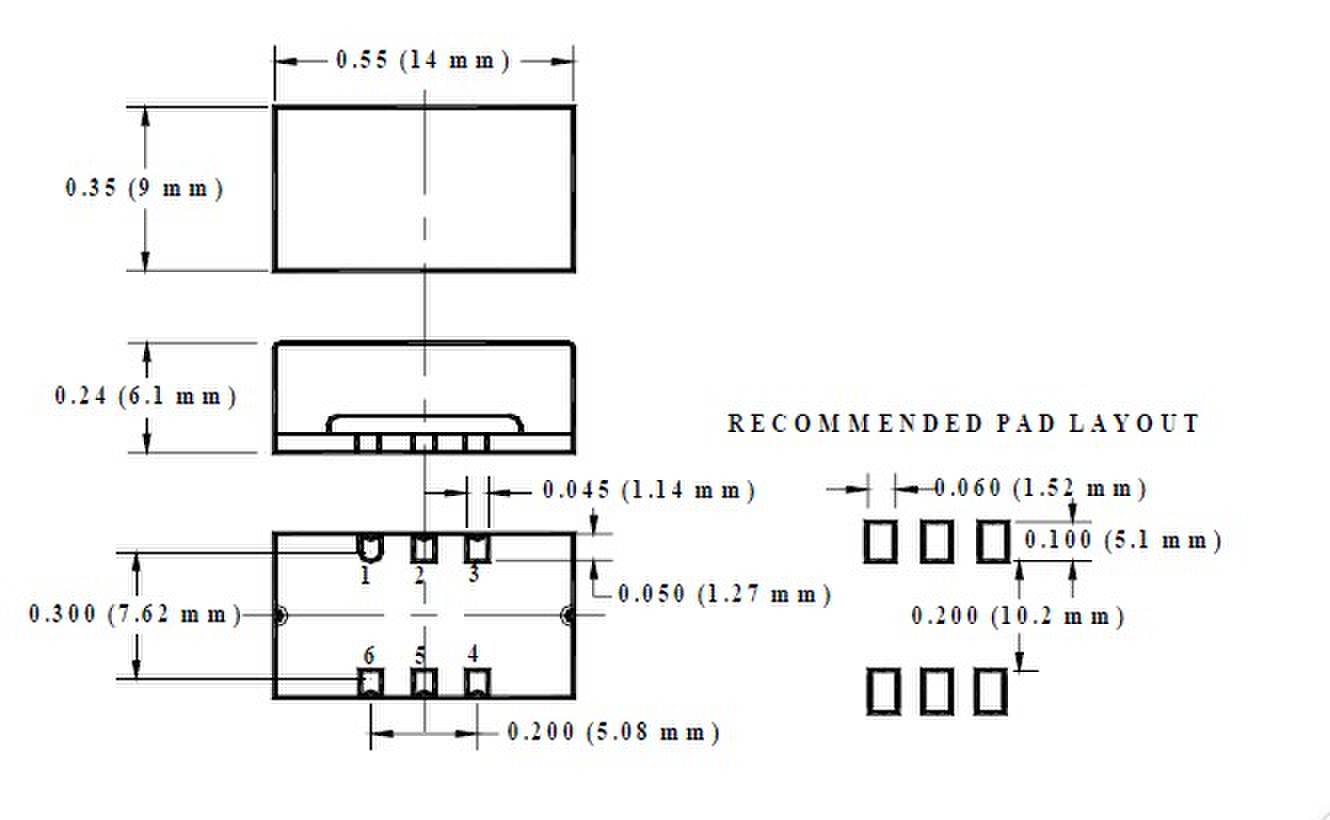

IDG2000 pin connection
