Product Summary

The IDT5V2310PGGI is a high performance, low skew clock buffer that operates up to 200MHz. The IDT5V2310PGGI operates in 2.5V and 3.3V environments. The IDT5V2310PGGI is characterized for operation from =40 to +85°C.

Parametrics

IDT5V2310PGGI absolute maximum ratings: (1) Power Supply Voltage VDD: -0.5 to +4.6V; (2) Input Voltage VI: -0.5 to VDD +0.5V; (3) Output Voltage VO: -0.5 to VDD +0.5V; (4) Input Clamp Current VI < 0 or VI > VDD IIK: ±50mA; (5) Output Clamp Current VO < 0 or VO > VDD IOK: ±50mA; (6) Continuous Total Output Current VO < 0 to VDD IO: ±50mA; (7) Storage Temperature Tstg: -65 to 150°C.

Features

IDT5V2310PGGI features: (1) High performance 1:10 clock driver for general purpose applications; (2) Operates up to 200MHz at VDD=3.3V; (3) Pin-to-pin skew < 50ps; (4) VDD range: 2.3V to 3.6V; (5) Output enable glitch suppression; (6) Distributes one clock input to two banks of five outputs; (7) 25Ω on-chip series dampening resistors; (8) Available in TSSOP and VFQFPN packages.

Diagrams

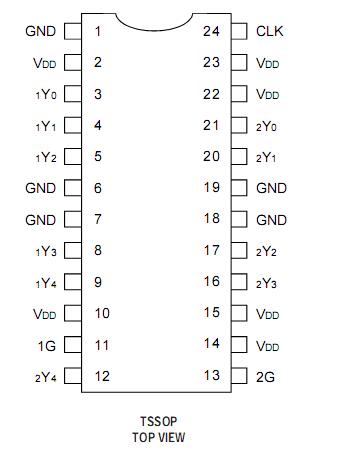

IDT5V2310PGGI Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

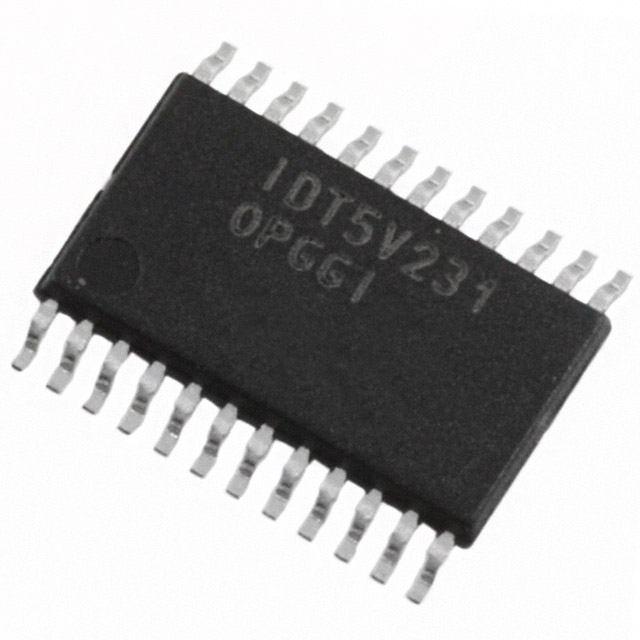

IDT5V2310PGGI
IDT5V2310PGGI

IC CLK BUFF 1:10 200MHZ 24-TSSOP
Data Sheet
0-1: $2.57
1-25: $2.07
25-100: $1.88
100-250: $1.70
250-500: $1.52
500-1000: $1.29
1000-2500: $1.22
2500-5000: $1.17
5000-10000: $1.14
IDT5V2310PGGI8
IDT5V2310PGGI8

IC CLK BUFF 1:10 200MHZ 24-TSSOP
Data Sheet
0-1: $2.75
1-25: $2.25
25-100: $2.02
100-250: $1.84
250-500: $1.61
500-1000: $1.38
