ISL6420IAZ

Product Summary

The ISL6420IAZ is a Synchronous Buck Pulse-Width Modulation (PWM) Controller which makes simple work out of implementing a complete control and protection scheme for a highperformance DC/DC buck converter. Designed to drive N-channel MOSFETs in a synchronous rectified buck topology, the ISL6420IAZ integrates control, output adjustment, monitoring and protection functions into a single package. The applications of the ISL6420IAZ include Power Supplies for Microprocessors/ASICs, Embedded Controllers; DSP and Core Processors; DDR SDRAM Bus Termination, Ethernet Routers and Switchers, High-Power DC/DC Regulators, Distributed DC/DC Power Architecture, Personal Computer Peripherals, Externally Referenced Buck Converters.

Parametrics

ISL6420IAZ absolute maximum ratings: (1)Bias Voltage, VIN: +18V; (2)BOOT and Ugate Pins: +24V; (3)ESD Classification, Human Body Model (Per MIL-STD-883 Method 3015.7): 1500V; (4)Charged Device Model (Per EOS/ESD DS5.3, 4/14/93): 2000V; (5)Maximum Junction Temperature (Plastic Package): 150℃; (6)Maximum Storage Temperature Range: -65℃ to 150℃; (7)Ambient Temperature Range: -40℃ to 85℃; (8)Junction Temperature Range: -40℃ to 125℃.

Features

ISL6420IAZ features: (1)Operates from 4.5V to 16V Input; (2)Excellent Output Voltage Regulation, 0.6V Internal Reference; ±1.0% Reference Accuracy Over Line and Temperature; (3)Resistor-Selectable Switching Frequency, 100kHz to 1.4MHz; (4)Voltage Margining and External Reference Tracking Modes; (5)Output Can Sink or Source Current; (6)Lossless, Programmable Overcurrent Protection, Uses Upper MOSFET’s rDS(ON); (7)Programmable Soft-Start; (8)Drives N-Channel MOSFETs; (9)Simple Single-Loop Control Design, Voltage-Mode PWM Control; (10)Fast Transient Response, High-Bandwidth Error Amplifier; Full 0% to 100% Duty Cycle; (11)Extensive Circuit Protection Functions, PGOOD, overvoltage, overcurrent, Shutdown; (12)QFN (4x4) Package, QFN Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Product Outline; QFN Near Chip Scale Package Footprint; Improves PCB Efficiency, Thinner in Profile; (13)Also Available in QSOP Package; (14)Pb-Free Plus Anneal Available (RoHS Compliant).

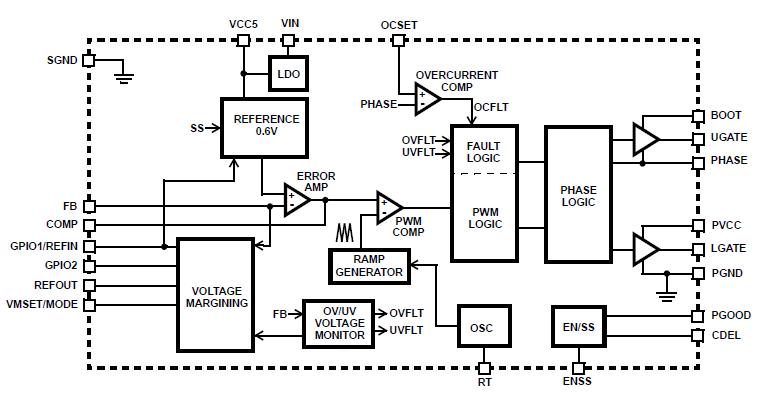

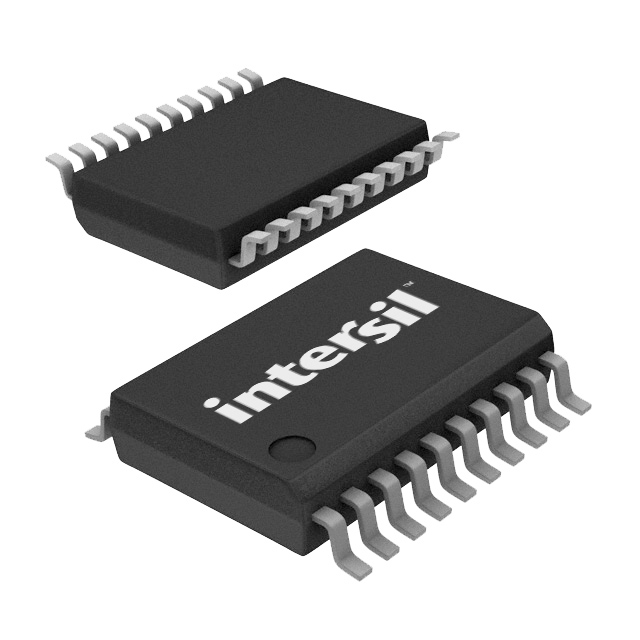

Diagrams
