Product Summary

The ISO7242MDW is a dual-channel digital isolator. To facilitate PCB layout, the channel is oriented in the same direction in opposite directions in the ISO7242MDW. The ISO7242MDW has a logic input and output buffer separated by TI’s silicon-dioxide (SiO2) isolation barrier, providing galvanic isolation of up to 4000 VPK. Used in conjunction with isolated power supplies, the ISO7242MDW blocks high voltage, isolates grounds, and prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.

Parametrics

ISO7242MDW absolute maximum ratings: (1)VCC Supply voltage, VCC1, VCC2: –0.5 V to 6 V; (2)VI Voltage at IN, OUT: –0.5 V to 6 V; (3)IO Output current: ±15 mA; (4)TJ Maximum junction temperature: 170℃.

Features

ISO7242MDW features: (1)Low Channel-to-Channel Output Skew; 1 ns max; (2)Low Pulse-Width Distortion (PWD); 1 ns max; (3)Low Jitter Content; 1 ns Typ at 150 Mbps; (4)Typical 25-Year Life at Rated Voltage; (5)UL 1577, IEC 61010-1, IEC 60950-1 and CSA Approved; (6)50 kV/μs Typical Transient Immunity; (7)Operates with 2.8-V (C-Grade), 3.3-V or 5-V Supplies; (8)4 kV ESD Protection; (9)High Electromagnetic Immunity.

Diagrams

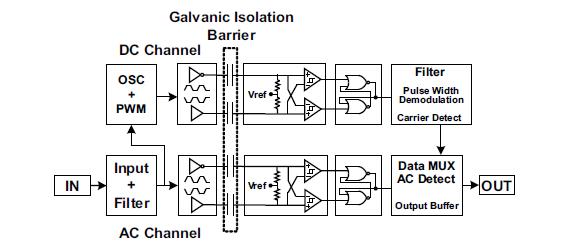

ISO7242MDW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISO7242MDW
ISO7242MDW

Texas Instruments

Isolator Interface IC Quad Ch 2/2 150Mbps Dig Iso

Data Sheet

0-1: $3.50
1-25: $3.26
25-100: $2.94
100-250: $2.70
ISO7242MDWG4
ISO7242MDWG4

Texas Instruments

Isolator Interface IC 4Ch Dig Isolator 150Mbps 2:2

Data Sheet

0-1: $6.53
1-25: $3.26
25-100: $2.94
ISO7242MDWRG4
ISO7242MDWRG4

Texas Instruments

Isolator Interface IC 4Ch Dig Isolator 150Mbps 2:2

Data Sheet

0-1485: $1.78
1485-2000: $1.72
ISO7242MDWR
ISO7242MDWR

Texas Instruments

Isolator Interface IC Quad Ch 2/2 150Mbps Dig Iso

Data Sheet

0-1485: $1.78
1485-2000: $1.72
