Product Summary
The K4T1G084QF-BCE7 is a 1Gb DDR2 SDRAM organized as a 32Mbit x 4 I/Os x 8banks, 16Mbit x 8 I/Os x 8banks or 8Mbit x 16 I/Os x 8 banks device. The K4T1G084QF-BCE7 achieves high speed double-data-rate transfer rates of up to 800Mb/sec/pin (DDR2-800) for general applications. The chip is designed to comply with the following key DDR2 SDRAM features such as posted CAS with additive latency, write latency = read latency - 1, Off-Chip Driver(OCD) impedance adjustment and On Die Termination.
Parametrics
K4T1G084QF-BCE7 absolute maximum ratings: (1)VDD, Voltage on VDD pin relative to VSS: -1.0 V to 2.3 V; (2)VDDQ, Voltage on VDDQ pin relative to VSS: -0.5 V to 2.3 V; (3)VDDL, Voltage on VDDL pin relative to VSS: -0.5 V to 2.3 V; (4)VIN, VOUT, Voltage on any pin relative to VSS: -0.5 V to 2.3 V; (5)TSTG, Storage Temperature: -55 to +100℃.
Features
K4T1G084QF-BCE7 features: (1)JEDEC standard VDD = 1.8V ± 0.1V Power Supply; (2)VDDQ = 1.8V ± 0.1V; (3)333MHz fCK for 667Mb/sec/pin, 400MHz fCK for 800Mb/sec/pin; (4)8 Banks; (5)Posted CAS; (6)Programmable CAS Latency: 3, 4, 5, 6; (7)Programmable Additive Latenc y: 0, 1, 2, 3, 4, 5; (8)Write Latency(WL) = Read Latency(RL) -1; (9)Burst Length: 4 , 8(Interleave/nibble sequential); (10)Programmable Sequential / Interleave Burst Mode; (11)Bi-directional Differential Data-Strobe (Single-ended data-strobe is an optional feature); (12)Off-Chip Driver(OCD) Impedance Adjustment; (13)On Die Termination; (14)Special Function Support, 50ohm ODT; High Temperature Self-Refresh rate enable; (15)Average Refresh Period 7.8us at lower than TCASE 85℃, 3.9us at 85℃ < TCASE < 95℃; (16)All of products are Lead-Free, Halogen-Free, and RoHS compliant.

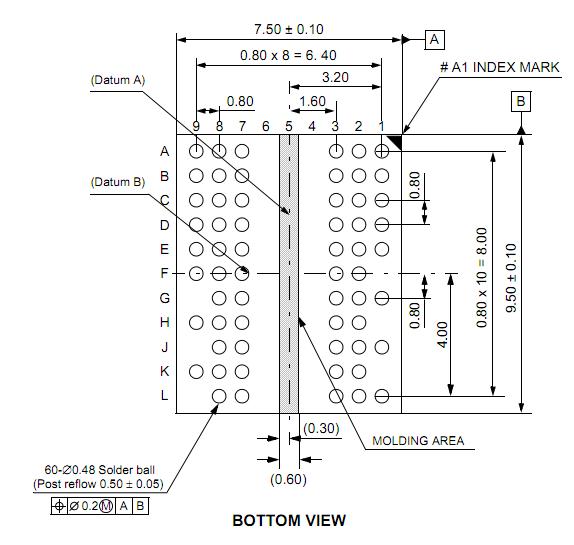

Diagrams
