LAN9115-MT

LAN9115-MT, full-featured, single-chip 10/100 Ethernet controller, QFP, 3.3V, SMSC Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: LAN9115-MT

Brand:: SMSC Corporation - SMSC | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-27

From Other Seller

Part Number:LAN9115-MT
US $2.50 - 3.00
Quantity:

piece

Product Summary

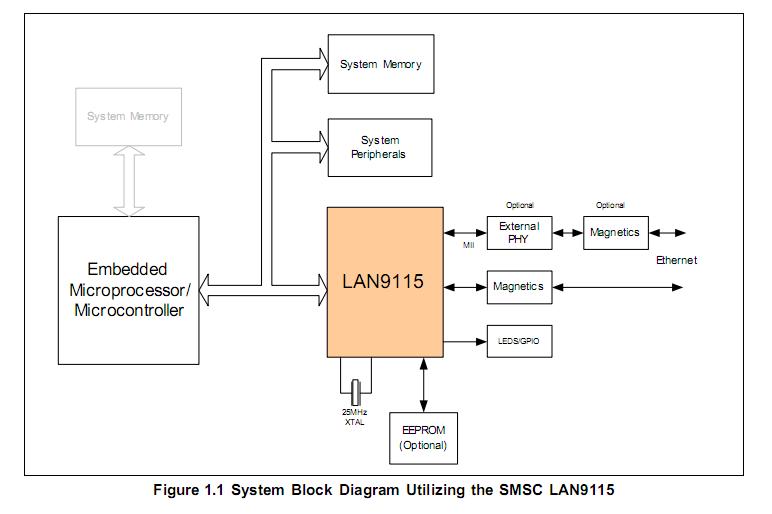

The LAN9115-MT is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where performance, flexibility, ease of integration and system cost control are required. The LAN9115-MT has been architected to provide the best price-performance ratio for any 16-bit application with medium performance requirements. It is fully IEEE 802.3 10BASE-T and 802.3u 100BASE-TX compliant. The applications of the LAN9115-MT are Printers, kiosks, POS terminals and security systems, Audio distribution systems, General embedded systems, Basic cable, satellite and IP set-top boxes, Vioce-over-IP solutions.

Parametrics

LAN9115-MT absolute maximum ratings: (1)Supply Voltage: +3.3V ± 10%; (2)Operating Temperature: 0℃ to 70℃; (3)Storage Temperature: -65℃ to 150℃; (4)Positive Voltage on any pin, with respect to Ground: 5.5V; (5)Negative Voltage on any pin, with respect to Ground: -0.3V.

Features

LAN9115-MT features: (1)Member of LAN9118 Family; optimized for medium-performance applications; (2)Efficient architecture with low CPU overhead; (3)Integrated PHY; supports external PHY via MII interface; (4)Supports audio & video streaming over Ethernet: multiple standard-definition (SD) MPEG2 streams; (5)Medium-speed member of LAN9118 Family (all members are pin-compatible); (6)Printers, kiosks, security systems; (7)General embedded applications; (8)Audio distribution systems; (9)Basic Cable, satellite, and IP set-top boxes; (10)Video-over IP Solutions, IP PBX & Video Phones; (11)Wireless routers & access points; (12)Digital video recorders; (13)16-bit interface; (14)Burst-mode read support; (15)External MII Interface; (16)Fully compliant with IEEE 802.3/802.3u standards; (17)Integrated Ethernet MAC and PHY; (18)10BASE-T and 100BASE-TX support; (19)Full- and Half-duplex support; (20)Full-duplex flow control; (21)Backpressure for half-duplex flow control; (22)Preamble generation and removal; (23)Automatic 32-bit CRC generation and checking; (24)Automatic payload padding and pad removal; (25)Loop-back modes.
