Product Summary

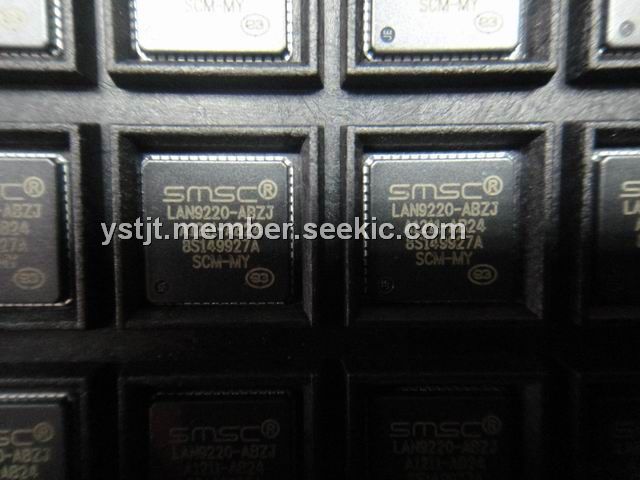

The LAN9220-ABZJ is a 16-bit Non-PCI Small Form Factor 10/100 Ethernet Controller with Variable Voltage I/O & HP Auto-MDIX Support . The applications for the LAN9220-ABZJ include Cable, satellite, and IP set-top boxes, Digital video recorders, Video-over IP solutions, IP PBX & video phones, Wireless routers & access points, Audio distribution systems, Printers, kiosks, security systems, General embedded applications.

Parametrics

LAN9220-ABZJ absolute maximum ratings: (1)Supply Voltage (VDDVARIO, VDD33REG, VDD33A): 0V to +3.6V; (2)Positive voltage on signal pins, with respect to ground:+6V ; (3)Negative voltage on signal pins, with respect to ground:-0.5V; (4)Positive voltage on XTAL1/CLKIN, with respect to ground: +4.6V; (5)Positive voltage on XTAL2, with respect to ground: +2.5V; (6)Ambient Operating Temperature in Still Air (TA): 0 to +70℃; (7)Storage Temperature : -65 to +150℃; (8)Lead Temperature Range: Refer to JEDEC SpecJ-STD-020; (9)HBM ESD Performance: +/- 5kV.

Features

LAN9220-ABZJ features: (1)Efficient architecture with low CPU overhead; (2)Easily interfaces to most 16-bit embedded CPU’s; (3)1.8V to 3.3V variable voltage I/O accommodates wide range of I/O signalling without voltage level shifters; (4)Integrated PHY with HP Auto-MDIX support; (5)Integrated checksum offload engine helps reduce CPU load; (6)Low pin count and small body size package for small form factor system designs.

Diagrams

LAN9220-ABZJ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LAN9220-ABZJ
LAN9220-ABZJ

SMSC

Ethernet ICs 16Bit Single Chip Ethernet Controller

Data Sheet

0-2600: $3.50
