Product Summary

The LCMXO1200C-3FTN256 is a CPLD. The LCMXO1200C-3FTN256 belongs to MachXO family which is optimized to meet the requirements of applications traditionally addressed by CPLDs and low capacity FPGAs: glue logic, bus bridging, bus interfacing, power-up control, and control logic. The LCMXO1200C-3FTN256 brings together the best features of CPLD and FPGA devices on a single chip.

Parametrics

LCMXO1200C-3FTN256 absolute maximum ratings: (1)Supply Voltage VCC: -0.5 to 3.75V; (2)Supply Voltage VCCAUX: -0.5 to 3.75V; (3)Output Supply Voltage VCCIO: -0.5 to 3.75V; (4)I/O Tristate Voltage Applied: -0.5 to 3.75V; (5)Dedicated Input Voltage Applied: -0.5 to 4.25V; (6)Storage Temperature (ambient): -65 to 150℃; (7)Junction Temp. (Tj): +125℃.

Features

LCMXO1200C-3FTN256 features: (1)Non-volatile, Infinitely Reconfigurable; (2)Sleep Mode; (3)TransFR Reconfiguration; (4)High I/O to Logic Density; (5)Embedded and Distributed Memory; (6)Flexible I/O Buffer; (7)sysCLOCK PLLs; (8)System Level Support.

Diagrams

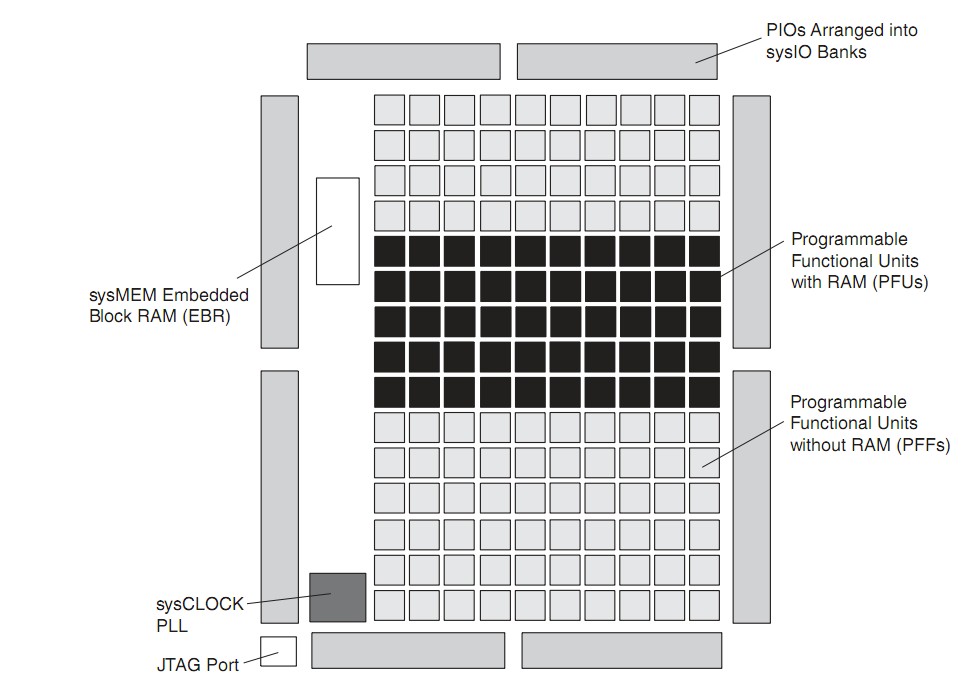

LCMXO1200C-3FTN256 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LCMXO1200C-3FTN256C
LCMXO1200C-3FTN256C
Lattice
CPLD - Complex Programmable Logic Devices 1200 LUTS 211 I/O
Data Sheet
0-1: $9.54
1-25: $8.31
25-100: $7.69
LCMXO1200C-3FTN256I
LCMXO1200C-3FTN256I
Lattice
CPLD - Complex Programmable Logic Devices 1200 LUTs 211 IO 1.8 /2.5/3.3V -3 Spd I
Data Sheet
0-1: $10.80
1-25: $9.42
25-100: $8.70
