LP2951ACDMR2G

LP2951ACDMR2G, Micropower Voltage Regulator, SOP, -1.5 to +30V, 75mA, ON Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: LP2951ACDMR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-29

From Other Seller

Part Number:LP2951ACDMR2G
US $2.50 - 3.00
Quantity:

piece

Product Summary

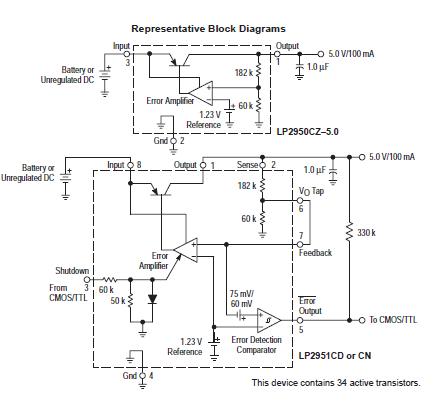

The LP2951ACDMR2G is a micropower voltage regulator which specifically designed to maintain proper regulation with an extremely low input–to–output voltage differential. The LP2951ACDMR2G features a very low quiescent bias current of 75 mA and are capable of supplying output currents in excess of 100 mA. Internal current and thermal limiting protection is provided. The LP2951ACDMR2G has three additional features. The first is the Error Output that can be used to signal external circuitry of an out of regulation condition, or as a microprocessor power–on reset.

Parametrics

LP2951ACDMR2G absolute maximum ratings: (1)Feedback Input Voltage, Vfb: -1.5 to +30Vdc; (2)Shutdown Input Voltage, Vsd: -0.3 to +30Vdc; (3)Error Comparator Output Voltage, Verr: -0.3 to +30Vdc; (4)Operating Junction Temperature, TJ: -40 to +125℃; (5)Storage Temperature Range, Tstg: -65 to +150℃.

Features

LP2951ACDMR2G features: (1)Low Quiescent Bias Current of 75 mA; (2)Low Input-to-output Voltage Differential of 50 mV at 100 mA and; (3)80 mV at 100 mA; (4)5.0 V, 3.3 V or 3.0 V ±0.5% Allows Use as a Regulator or Reference; (5)Extremely Tight Line and Load Regulation; (6)Requires Only a 1.0 mF Output Capacitor for Stability; (7)Internal Current and Thermal Limiting; (8)Error Output Signals an Out of Regulation Condition; (9)Output Programmable from 1.25 V to 29 V; (10)Logic Level Shutdown Input (See Following Page for Device Information).
