Product Summary
The M34D64-WMN6T is a 64 Kbit Serial I2C-compatible electrically erasable programmable memory (EEPROM) device organized as 8192 x 8. In order to prevent data corruption and inadvertent Write operations during Power-up, a Power On Reset (POR) circuit is included. The internal reset is held active until VCC has reached the POR threshold value, and all operations are disabled-the M34D64-WMN6T will not respond to any command.
Parametrics
M34D64-WMN6T absolute maximum ratings: (1)TSTG, Storage Temperature: -65 to 150℃; (2)TLEAD, Lead Temperature during Soldering SO: 20 seconds (max): 235℃; TSSOP: 20 seconds (max): 235℃; (3)VIO, Input or Output range: -0.6 to 6.5 V; (4)VCC, Supply Voltage: -0.3 to 6.5 V; (5)VESD, Electrostatic Discharge Voltage (Human Body model): -4000 to 4000 V.
Features
M34D64-WMN6T features: (1)Two Wire I2C Serial Interface Supports 400 kHz Protocol; (2)Single Supply Voltage: 2.5V to 5.5V for M34D64-W; 1.8V to 5.5V for M34D64-R; (3)Hardware Write Control of the top quarter of memory; (4)BYTE and PAGE WRITE (up to 32 Bytes); (5)RANDOM and SEQUENTIAL READ Modes; (6)Self-Timed Programming Cycle; (7)Automatic Address Incrementing; (8)Enhanced ESD/Latch-Up Behavior; (9)More than 1M Erase/Write Cycles; (10)More than 40 Year Data Retention.

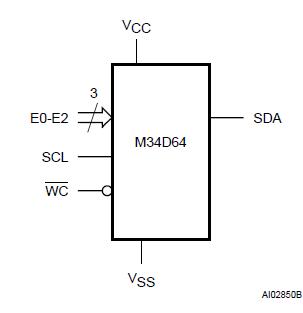

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M34D64-WMN6T |
STMicroelectronics |
EEPROM 5.5V 64K (8192x8) |
Data Sheet |
Negotiable |
|
||||||||
|
M34D64-WMN6TP |
STMicroelectronics |
EEPROM 64Kbit Serial EE |
Data Sheet |
|
|
||||||||
