MAX3002EUP

translator, 559mW, -0.3 to +6V, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: MAX3002EUP

Brand:: Maxim Integrated Products - Maxim | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-07

From Other Seller

Part Number:MAX3002EUP
US $2.50 - 3.00
Quantity:

piece

Product Summary

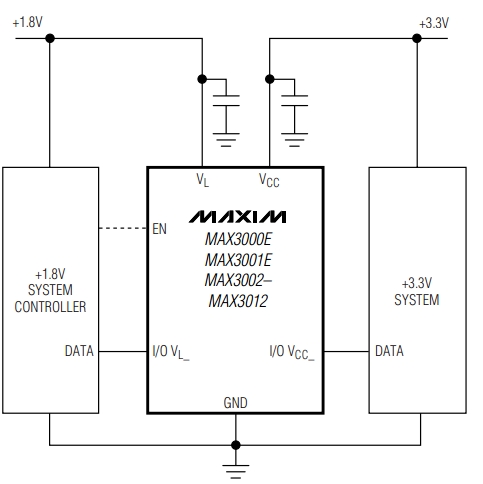

The MAX3002EUP is an 8-channel level translator. The MAX3002EUP provides the level shifting necessary to allow data transfer in a multivoltage system. Logic signals present on the VL side of the MAX3002EUP appear as a higher voltage logic signal on the VCC side of the device, and vice-versa. Applications of the MAX3002EUP include: cellphones, SPIand MICROWIRE Level Translation, Low-Voltage ASIC Level Translation, Smart Card Readers, Cellphone Cradles, Portable POS Systems, Portable Communication Devices, Low-Cost Serial Interfaces, GPS and Telecommunications Equipment.

Parametrics

MAX3002EUP absolute maximum ratings: (1) All Voltages Referenced to GND Vcc: -0.3 to +6V, VL: -0.3 to +6V, I/O Vcc: -0.3 to (Vcc +0.3V) , I/O VL: -0.3 to (VL +0.3V) , EN, EN A/B: -0.3 to +6V; (2) Short-Circuit Duration I/O VL_, I/O VCC_ to GND: Continuous; (3) Continuous Power Dissipation (TA = +70 °C) , 0-Pin TSSOP (derate 7.0mW/°C above +70 °C) : 559mW; (4) Operating Temperature Ranges: -40°C to +125°C; (5) Junction Temperature: +150°C; (6) Storage Temperature Range: -65°C to +150°C ; (7) Lead Temperature (soldering, 10s) : +300°C.

Features

MAX3002EUP features: (1) Guaranteed Data Rate Options; (2) Bidirectional Level Translation; (3) Unidirectional Level Translation; (4) Operation Down to +1.2V on VL; (5) ±15kV ESD Protection on I/O VCC Lines; (6) Ultra-Low 0.1µA Supply Current in Shutdown; (7) Low Quiescent Current (<10µA) ; (8) UCSP and TSSOP Packages.
