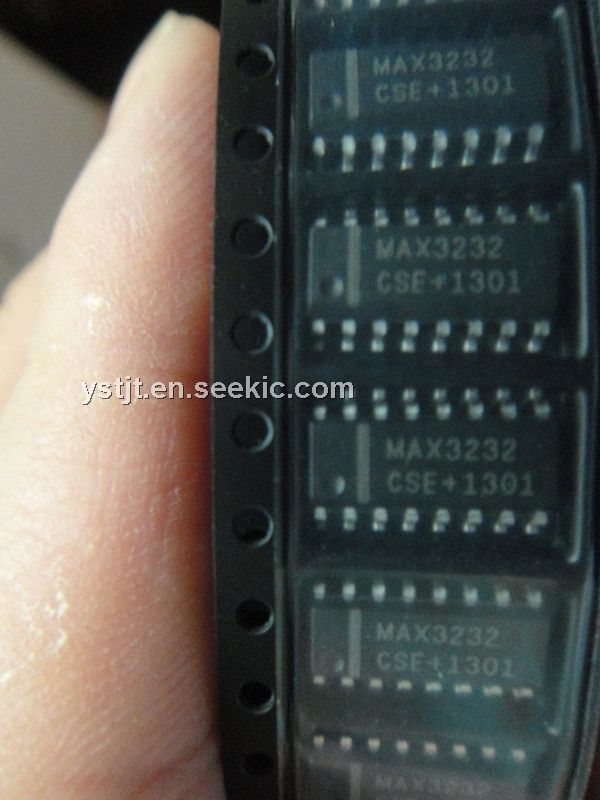

MAX3232C

MAX3232C, multichannel RS-232 line driver/receiver, SOP, -0.3 V to 6 V, 300 μA, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 300 :	3.00 / Piece
301 ~ 600 :	2.80 / Piece
601 ~ 1000 :	2.50 / Piece

PartNumber:: MAX3232C

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Alice's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-28

From Other Seller

Part Number:MAX3232C
US $2.50 - 3.00
MAX3232CDR

US $0.80 - 1.87 / Piece
(0) Remove
MAX3232CPE

US $0.15 - 0.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

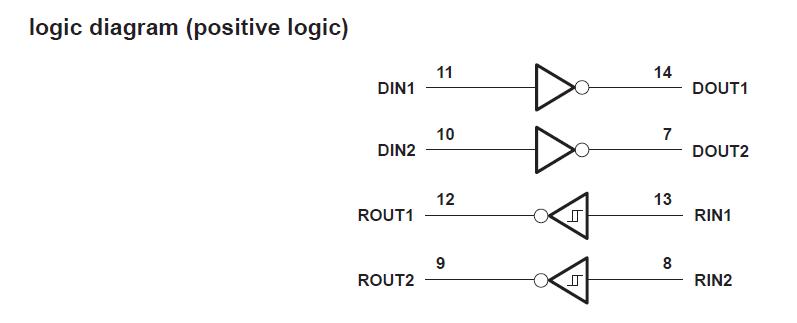

The MAX3232C is a multichannel RS-232 line driver/receiver consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The MAX3232C meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector.

Parametrics

MAX3232C absolute maximum ratings: (1)Supply voltage range, VCC: -0.3 V to 6 V; (2)Positive output supply voltage range, V+: -0.3 V to 7 V; (3)Negative output supply voltage range, V-: -0.3 V to 7 V; (4)Supply voltage difference, V+ - V-: 13 V; (5)Input voltage range, VI: Drivers: -0.3 V to 6 V, Receivers: -25 V to 25 V; (6)Operating virtual junction temperature, TJ: 150℃; (7)Storage temperature range, Tstg: -65℃ to 150℃.

Features

MAX3232C features: (1)RS-232 Bus-Pin ESD Protection Exceeds; (2)±15 kV Using Human-Body Model (HBM); (3)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (4)Operates With 3-V to 5.5-V VCC Supply; (5)Operates Up To 250 kbit/s; (6)Two Drivers and Two Receivers; (7)Low Supply Current: 300 μA Typical; (8)External Capacitors: 4 × 0.1 μF; (9)Accepts 5-V Logic Input With 3.3-V Supply; (10)Alternative High-Speed Pin-Compatible.
